Tissue Culture Microscope
Product Code : JA-M-876

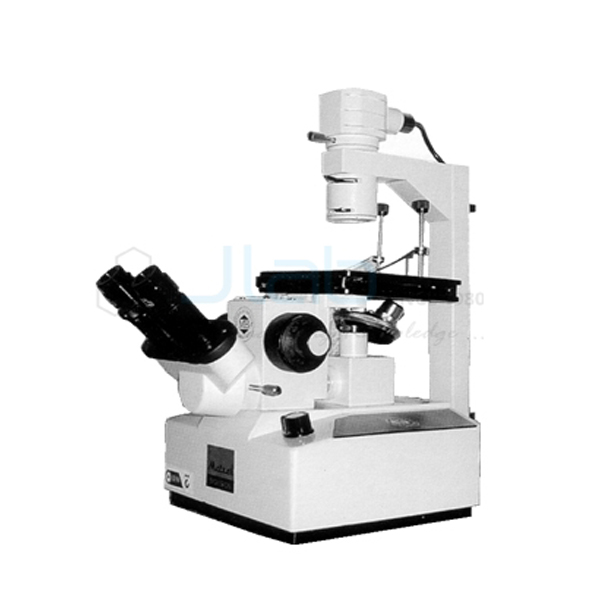

The Tissue Culture Microscope (SKU JA-M-876) is a laboratory microscope for examining cultures in flasks and bottles. It has a 45-degree binocular head, interchangeable with a monocular or trinocular head, a quadruple revolving turret nosepiece and achromatic 5x, 10x, LWD 20x and LWD 40x SL objectives. An oversize 180 x 150 mm stage with two extension plates takes large bottles and micro filters, and Koehler illumination comes from a 6 V 20 W halogen lamp. JaincoLab manufactures this tissue culture microscope.
Specifications
The microscope has a 45-degree inclined binocular head interchangeable with monocular or trinocular heads, a quadruple turret nosepiece with click stops, a 180 x 150 mm plain stage with two 150 x 65 mm extension plates, post-mounted 6 V 20 W halogen Koehler illumination and four achromatic objectives.
| Product | Tissue Culture Microscope |
| SKU | JA-M-876 |
| Head | Binocular, 45-degree inclined; interchangeable with monocular or trinocular head |
| Nosepiece | Quadruple revolving turret with positive click stops |
| Stage | Oversize plain stage 180 x 150 mm with 2 extension plates of 150 x 65 mm |
| Illumination | Koehler system, post-mounted 6 V 20 W halogen illuminator |
| Objectives | Achromatic 5x, 10x, LWD 20x and LWD 40x SL |
| Eyepieces | Confirmed on the quotation |
Applications of the tissue culture microscope
Long working distance objectives and the oversize stage let users view cells through the wall of culture flasks, bottles and dishes, and check micro filters, in college biotechnology, microbiology and cell biology teaching laboratories.
- Viewing cell cultures in flasks and bottles
- Checking micro filters
- Biotechnology and cell biology teaching labs
- Microbiology practicals
- Research training in colleges
Scope of supply
One unit is one tissue culture microscope with binocular head, four objectives, stage with extension plates and halogen illuminator. Alternative heads, eyepieces, accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, lead time and packing are confirmed on each quotation for the quantity ordered and the delivery destination. JaincoLab supplies single-school orders as well as bulk requirements for schools, colleges and education projects, and exports to buyers in Africa, the Middle East and South and South-East Asia.
JaincoLab supports tender contractors as well as institutions: we manufacture and export laboratory equipment for Ministry of Education projects, World Bank-funded tenders and United Nations programmes, executed successfully in many countries, and we specialise in turnkey laboratory set-ups. Contact us through the tenders page early in your bid preparation.
Frequently asked questions
Which objectives are fitted?
Achromatic 5x, 10x, LWD 20x and LWD 40x SL.
What stage size does it have?
An oversize plain stage of 180 x 150 mm with two 150 x 65 mm extension plates for large bottles and micro filter work.
Can the head be changed?
Yes. The binocular head is interchangeable with a monocular or trinocular observation head.
What should a quotation request include?
Send the SKU JA-M-876, the head type, the number of microscopes and the delivery destination.
