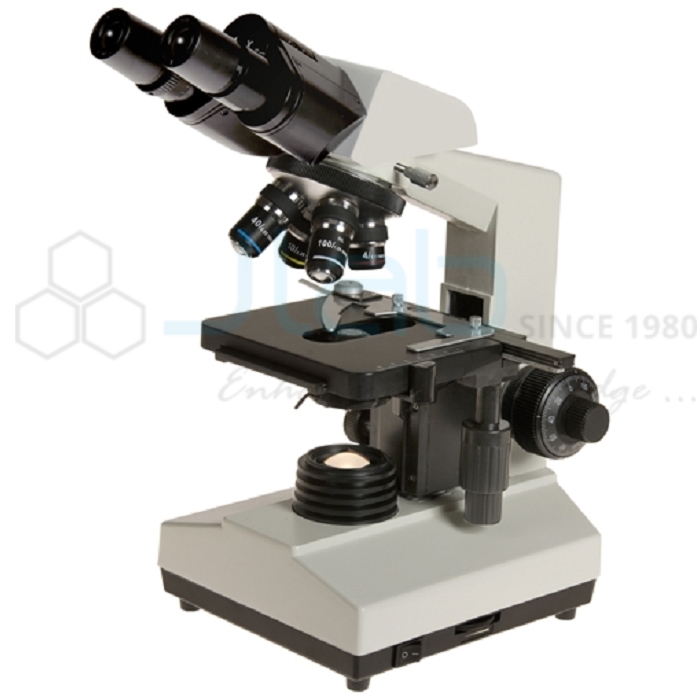

Binocular Research Microscope
Product Code : JA-M-947
The Binocular Research Microscope (SKU JA-M-947) gives two-eyed viewing through a 45-degree inclined binocular head that rotates through 360 degrees, over DIN achromatic 4x, 10x, 40x SL and 100x SL oil-immersion objectives and DIN WF 10x eyepieces. Slides move on a 135 x 140 mm mechanical stage with low coaxial controls, 50 x 70 mm travel and a graduated vernier, lit by a 6 V 20 W halogen lamp or a daylight mirror. JaincoLab manufactures this binocular research microscope for college and teaching labs.
Specifications
Listed specification: binocular head at 45 degrees, rotatable 360 degrees; quadruple nosepiece with click stops; 135 x 140 mm mechanical stage with low coaxial X-Y controls and 50 x 70 mm vernier-scaled travel; 6 V 20 W halogen lamp for 220/110 V plus daylight mirror; DIN achromatic objectives; DIN WF 10x.
| Product | Binocular Research Microscope |
| SKU | JA-M-947 |
| Head | Binocular, 45-degree inclined, rotatable 360 degrees |
| Nosepiece | Quadruple with click stops |
| Stage | Mechanical 135 x 140 mm; low coaxial controls; 50 x 70 mm travel; graduated vernier |
| Illumination | 6 V 20 W halogen, 220/110 V; daylight mirror attachment |
| Objectives | DIN achromatic 4x, 10x, 40x SL, 100x SL oil immersion |
| Eyepieces | DIN wide field WF 10x |
Applications of the binocular research microscope
The binocular head reduces strain in long sessions, so departments use this microscope for extended oil-immersion work, detailed histology and demonstration of slides to students who take turns at the eyepieces.
- Extended oil-immersion sessions
- Histology and pathology teaching
- Microbiology practicals
- Demonstrations to student groups
- College research projects
Scope of supply
One unit is one binocular research microscope with four DIN objectives, WF 10x eyepieces, halogen lamp and daylight mirror. Accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
The quotation confirms the minimum order quantity, lead time and packing for the quantity and delivery destination you give. Orders from individual schools, bulk purchases for colleges and education programmes, and tender requirements are all supplied, with export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which objectives are supplied?
DIN achromatic 4x, 10x, 40x SL and 100x SL oil immersion.
What illumination does it use?
A 6 V 20 W halogen lamp for 220/110 V, plus a mirror attachment for daylight.
How does it compare with the Binocular Microscope JA-M-871?
Both listings give the same head, stage, optics and lamp specification.
What should a quotation request include?
Send the SKU JA-M-947, the mains voltage, the number of microscopes and the delivery destination.
