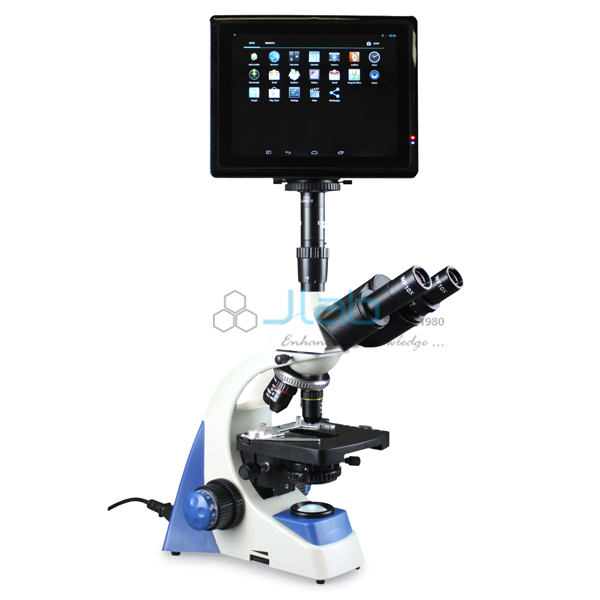

Trinocular Microscope with LED Illumination Series 40X-1000X

Trinocular Microscope with LED Illumination Series 40X-1000X

Product Code : JA-M-8066

Trinocular Microscope with LED Illumination Series 40X-1000X
Description:
Jaincolab trinocular microscope is ideal for use at the senior high school and college level, or for use in veterinary and medical applications.
The trinocular port allows you to connect the 8” LCD touchscreen with a 2.0MP camera using the included C-mount relay lens, to broadcast images of the specimen being observed.
It offers four levels of magnification, ranging from 40x to 1000x.
The coaxial coarse and fine focusing knobs are positioned low on the bracket, making certain that adjustments are made with maximum stability and minimum strain.
It offers USB 2.0 plug-and-play compatibility, and your choice of picture output from Wi-Fi, Bluetooth, HDMI, or a Mini SD Card.
The ball-bearing driven, reversed nosepiece with click-stops, guarantee parcentration and repeatability with every magnification change.

Specification:-

Head

Trinocular, 30° inclined, rotates 360°  (54-76mm interpupillary adjustment)

Eyepiece

WF 10x with pointer

Trinocular Port

C-mount ready

Magnification

40x, 100x, 400x, 1000x

Objective Lens

4x, 10x, 40xS, 100xS oil DIN achromatic

Condenser

1.25 N.A. Abbe lens

Diaphragm

Iris diaphragm  with a swing-out filter holder

Focusing

Coaxial coarse and fine focusing with gear movement for smooth operation

Stage

Double layer built-in mechanical stage with a pair of stage clips

Light Source

LED Illumination with intensity control

Power

110V



Touch Screen & Camera Specifications:

Screen Size

8 inches

Camera Resolution

2.0 megapixel

Display Resolution

1027 x 768

CPU

Dual core 1.41GHz

Image Format

JPEG, BMP, TIFF, RAW

Operating System

Android 4.1.1

Compatibility

Windows XP, Vista, 7, 8, 10 / Mac / Linux

Interface

USB 2.0

Camera Output

Wi-Fi / Bluetooth / HDMI / Mini SD Card
