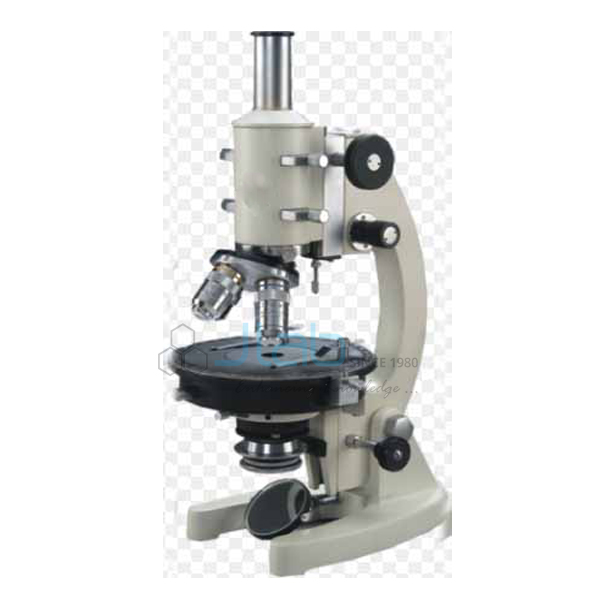

Laboratory Polarising Microscope
Product Code : JA-M-996
The Laboratory Polarising Microscope (SKU JA-M-996) is a monocular microscope for studying minerals, rocks and crystals under polarised light. Its 130 mm circular stage rotates through 360 degrees and is graduated in 5-degree steps, so extinction angles and optical changes can be followed as the specimen turns. P4x, P10x and P40x SL objectives are listed with cross-line and micrometer eyepieces. Geology and chemistry departments use this laboratory polarising microscope for thin section and crystal practicals.
Specifications
The product data gives a monocular inclinable body with graduated coarse and fine focusing knobs, a 130 mm circular rotatable stage graduated through 360 degrees in 5-degree steps, P4x, P10x and P40x SL objectives, and WF10x, H5x with cross and H10x micrometer eyepieces.
| Product | Laboratory Polarising Microscope |
| SKU | JA-M-996 |
| Body | Monocular, inclinable; graduated coarse and fine focusing knobs |
| Stage | Circular rotatable, 130 mm diameter, graduated 360 degrees in 5-degree steps |
| Objectives | P4x, P10x, P40x SL |
| Eyepieces | WF10x; H5x with cross; H10x micro |
Applications of the laboratory polarising microscope
In a teaching laboratory it is used to identify minerals in rock thin sections from their optical behaviour as the stage rotates, to study crystals grown in chemistry practicals, and to measure grain sizes with the micrometer eyepiece.
- Mineral identification in rock thin sections
- Measuring extinction angles on the graduated stage
- Crystal studies in chemistry practicals
- Grain size estimates with the micrometer eyepiece
- B.Sc and M.Sc geology practicals
Scope of supply
One unit is one laboratory polarising microscope with the listed body, rotating stage, three P objectives and three eyepieces. Polariser and analyser details, illumination, accessory plates, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, lead time and packing are confirmed on each quotation for the quantity ordered and the delivery destination. JaincoLab supplies single-school orders as well as bulk requirements for schools, colleges and education projects, and exports to buyers in Africa, the Middle East and South and South-East Asia.
JaincoLab supports tender contractors as well as institutions: we manufacture and export laboratory equipment for Ministry of Education projects, World Bank-funded tenders and United Nations programmes, executed successfully in many countries, and we specialise in turnkey laboratory set-ups. Contact us through the tenders page early in your bid preparation.
Frequently asked questions
How is the stage graduated?
The 130 mm circular stage rotates through 360 degrees and is graduated in 5-degree steps.
Which objectives are supplied?
P4x, P10x and P40x SL objectives.
What are the eyepieces for?
WF10x for general viewing, H5x with cross-lines for alignment and H10x micro for measurement.
What should a quotation request include?
Send the SKU JA-M-996, the quantity, any accessory plates you need and the delivery destination.
