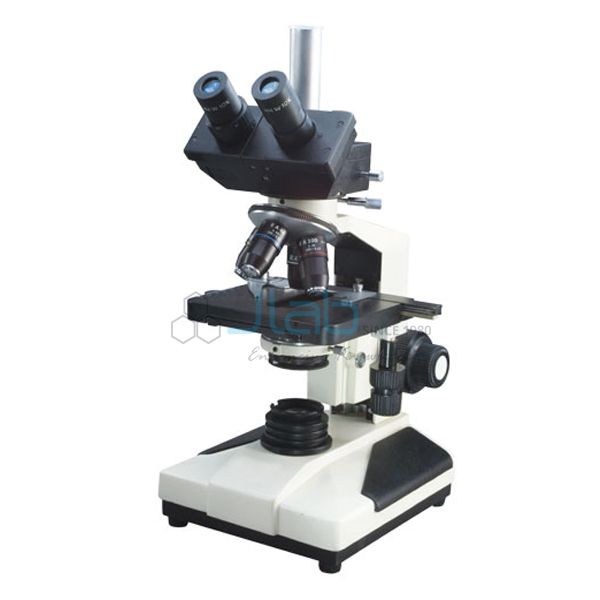

Advanced Trinocular Research Microscope
Product Code : JA-M-945
The Advanced Trinocular Research Microscope (SKU JA-M-945) adds a camera port to a research stand: its 45-degree inclined trinocular head rotates through 360 degrees above a quadruple nosepiece with achromatic 4x, 10x, 40x SL and 100x SL oil-immersion objectives and WF 10x eyepieces. The built-in graduated 135 x 120 mm mechanical stage scans slides over 50 x 75 mm with low coaxial controls, and a 6 V 20 W halogen lamp with daylight mirror lights the field. JaincoLab manufactures this advanced trinocular research microscope.
Specifications
Listed: 45-degree trinocular head rotating 360 degrees; quadruple nosepiece; built-in graduated mechanical stage 135 x 120 mm with low coaxial drive and 50 x 75 mm scan range; 6 V 20 W halogen lamp, 220/110 V, and mirror attachment; four achromatic objectives up to 100x oil; WF 10x eyepieces.
| Product | Advanced Trinocular Research Microscope |
| SKU | JA-M-945 |
| Head | Trinocular, 45-degree inclined, rotatable through 360 degrees |
| Nosepiece | Quadruple with click stops |
| Stage | Built-in graduated mechanical stage 135 x 120 mm; low coaxial drive; scan range 50 x 75 mm |
| Illumination | 6 V 20 W halogen, 220/110 V; daylight mirror attachment |
| Objectives | Achromatic 4x, 10x, 40x SL, 100x SL oil immersion |
| Eyepieces | Wide field WF 10x |
Applications of the advanced trinocular research microscope
The trinocular port lets a college department connect a camera to record slides, display them on a screen for a class or keep images for project reports, while students continue to observe through the eyepieces.
- Recording slide images with a camera
- Projecting live images for teaching
- Microbiology with oil immersion
- Histology and pathology teaching
- College research projects
Scope of supply
One unit is one advanced trinocular research microscope with four objectives, WF 10x eyepieces, halogen lamp and mirror attachment. Camera, adapter, accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
MOQ, lead time and packing are stated on each quotation according to the order quantity and the delivery destination. Bulk orders for school laboratories, colleges and education programmes are supplied, and export consignments are shipped to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Can a camera be attached?
Yes. The trinocular head provides a port for a camera; the camera and adapter are confirmed on the quotation.
Which objectives are fitted?
Achromatic 4x, 10x, 40x SL and 100x SL oil immersion.
What is the stage travel?
The 135 x 120 mm graduated mechanical stage scans slides over 50 x 75 mm.
What should a quotation request include?
Send the SKU JA-M-945, whether a camera is needed, the number of microscopes and the delivery destination.
