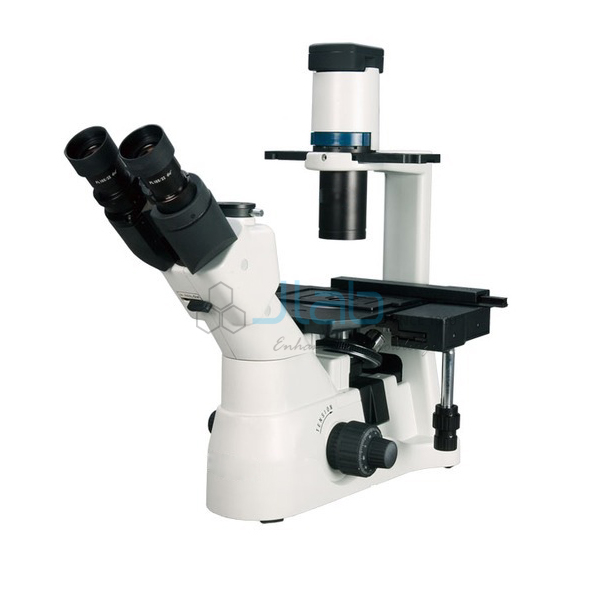

Advanced Inverted Tissue Culture Microscope
Product Code : JA-M-959
The Advanced Inverted Tissue Culture Microscope (SKU JA-M-959) gives 100x to 640x on living cultures, using long working distance plan achromatic objectives and a phase contrast attachment for unstained cells. A reticule eyepiece graduated at 0.1 mm per division allows simple measurement, and a 35 mm photo unit with S5X photo eyepiece is listed. It is aimed at biotechnology, microbiology and cell culture laboratories that need an advanced inverted tissue culture microscope for teaching and research training.
Specifications
As listed, the microscope has WF10x and WF16x wide-field eyepieces, a 10x reticule eyepiece, three LWD plan achromatic objectives (LPL 10/0.25, 25/0.40 and 40/0.60), an LPL Ph 25/0.40 phase contrast attachment and a 6 V 20 W halogen lamp with adjustable brightness, giving 100x to 640x.
| Product | Advanced Inverted Tissue Culture Microscope |
| SKU | JA-M-959 |
| Magnification | 100x to 640x |
| Eyepieces | Wide-field WF10x and WF16x; reticule eyepiece 10x (0.1 mm/division) |
| Objectives | LWD plan achromatic LPL 10/0.25, LPL 25/0.40, LPL 40/0.60 |
| Phase contrast | LWD plan phase contrast attachment LPL Ph 25/0.40 |
| Illumination | 6 V 20 W halogen lamp, adjustable brightness |
| Photography | 35 mm photo unit with S5X photo eyepiece |
Applications of the advanced inverted tissue culture microscope
Its main use is observing unstained living cells in culture vessels: phase contrast shows cell outlines without staining, the long working distance objectives reach through flask and dish bases, and the reticule eyepiece supports size estimates in practical work.
- Routine inspection of cell and tissue cultures
- Phase contrast observation of unstained cells
- Measuring cells with the reticule eyepiece
- Biotechnology and microbiology practicals
- Postgraduate and research training laboratories
Scope of supply
One unit is one advanced inverted tissue culture microscope with the listed eyepieces, three LWD plan objectives, phase contrast attachment and halogen lamp. The photo unit, accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Each quotation states the minimum order quantity, the lead time and the packing for the quantity requested and the destination. JaincoLab handles bulk school and college orders and tender supplies, and ships to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What magnification range does it cover?
100x to 640x, from the WF10x and WF16x eyepieces with the 10, 25 and 40 LWD plan objectives.
Is phase contrast included?
An LWD plan phase contrast attachment LPL Ph 25/0.40 is listed in the specification.
Can cells be measured?
A 10x reticule eyepiece graduated at 0.1 mm per division is listed for measurement work.
What should a quotation request include?
Send the SKU JA-M-959, whether the photo unit is required, the quantity and the delivery destination.
