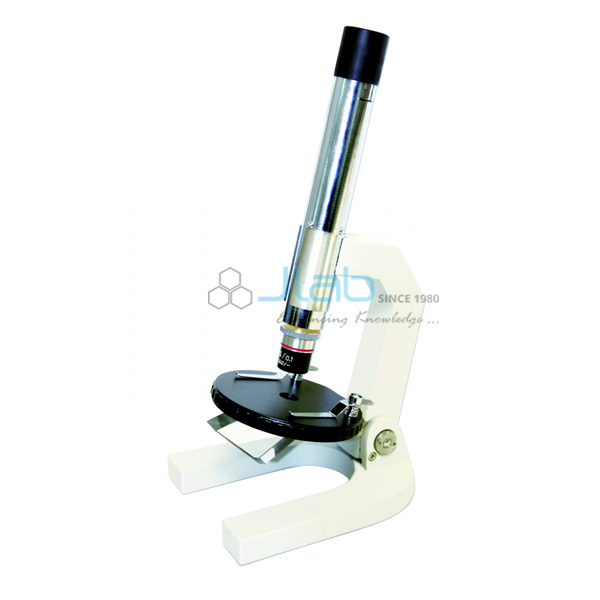

Beginner Monocular Microscope Metal Frame
Product Code : JA-M-8038
The Beginner Monocular Microscope Metal Frame (SKU JA-M-8038) is a simple all-metal microscope supplied by JaincoLab that needs no electricity: a prism gathers light from the room and sends it up the optical path. Focusing is by sliding the tube up and down, and the buyer chooses a 5x or 10x wide-field eyepiece and a 4x or 10x DIN objective for 20x, 40x or 100x. With no wires, mirrors or gears, this beginner monocular microscope suits young students and rural classrooms.
Specifications
The listing gives a monocular head on an arm that tilts to 45 degrees, focusing by moving the optical tube, a choice of 5x or 10x wide-field eyepiece with pointer, a choice of 4x or 10x achromatic DIN objective, prism illumination from ambient light, a 3.5 in rotating stage and an all-metal frame.
| Product | Beginner Monocular Microscope Metal Frame |
| SKU | JA-M-8038 |
| Head | Monocular; arm tilts up to 45 degrees; focusing by moving the optical tube |
| Eyepiece | 5x or 10x wide-field with pointer (choice) |
| Objective | Achromatic DIN 4x or 10x (choice) |
| Magnification | 20x, 40x or 100x |
| Illumination | Prism light-gathering system using ambient room light |
| Stage | 3.5 in round moveable stage, 360-degree rotation, spring clips |
| Construction | All-metal frame; no electrical parts, mirrors, gears or knobs |
Applications of the metal frame beginner microscope
Because it needs neither power nor adjustment of a mirror, it is used where simplicity matters: first microscopy lessons, classrooms without reliable electricity and outdoor study of minerals, insects, flowers and pond water.
- First microscopy lessons for young students
- Classrooms without reliable power
- Pond water and plant observation
- Minerals and small stones
- Outdoor and field activities
Scope of supply
One unit is one beginner monocular microscope with the eyepiece and objective chosen. Additional eyepieces or objectives, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Packing, minimum order quantity and lead time depend on the order size and the delivery destination, and each is confirmed on the quotation. Bulk orders for school and college laboratories and tender supplies are handled, including export shipments to Africa, the Middle East and South and South-East Asia.
JaincoLab specialises in turnkey laboratory projects funded by education ministries, the World Bank and United Nations programmes, manufacturing and exporting the equipment and executing these projects successfully in many countries. Tender bidders can send their requirement list through our tenders page for a line-by-line quotation.
Frequently asked questions
Does it need batteries or mains power?
No. A prism collects ambient room light, so there are no electrical parts.
Which magnifications are possible?
20x, 40x or 100x, from a 5x or 10x eyepiece with a 4x or 10x DIN objective.
How is it focused?
By moving the optical tube up and down; there are no knobs or gears.
What should a quotation request include?
Send the SKU JA-M-8038, the eyepiece and objective choice, the quantity and the delivery destination.
