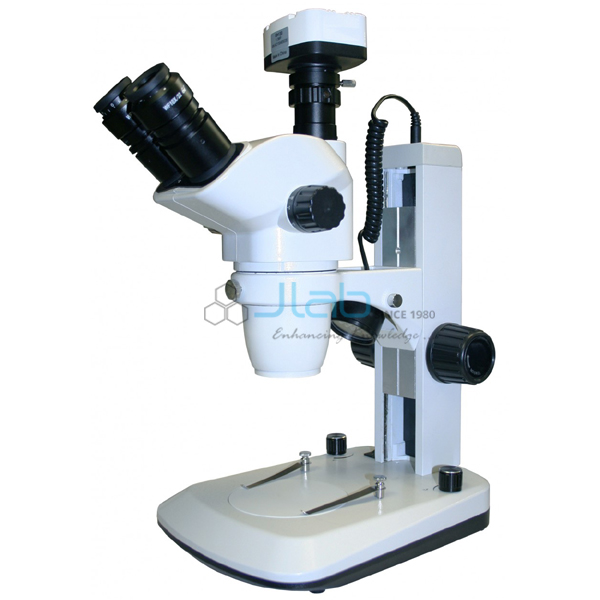

Digital Wide Field Stereo Zoom Trinocular Microscope
Product Code : JA-M-8128
The Digital Wide Field Stereo Zoom Trinocular Microscope (SKU JA-M-8128) is a zoom stereo microscope supplied by JaincoLab with a 50/50 trinocular head for a digital eyepiece camera. The 0.67x to 4.5x zoom body gives 6.7x to 45x at a 105 mm working distance, and optional auxiliary objectives and eyepieces extend it to 3.4x to 180x.
Specifications
Optical values and the listed camera options are shown below.
| Product | Digital Wide Field Stereo Zoom Trinocular Microscope |
| SKU | JA-M-8128 |
| Magnification | 6.7x-45x; 3.4x-180x with auxiliary objectives and optional eyepieces |
| Zoom body | 0.67x-4.5x, zoom ratio 1:6.7, parfocal |
| Working distance | 105 mm; 26-177 mm with auxiliary objectives |
| Head | Trinocular, 50/50 split, inclined 45 degrees, rotates 360 degrees; IPD 54-76 mm |
| Eyepieces | Paired WF10x/22 mm high eyepoint; diopter +/-5 on both; lockable with setscrews |
| Focusing | Heavy-duty rack and pinion; two knobs with tension; 100 mm focus range |
| Stage | 95 mm glass plate and 95 mm reversible black/white plate; sample clips |
| Illumination | Diagonally adjustable top LED and bottom LED, each dimmable; transmitted, incident or both |
| Camera options | Eyepiece cameras of 10.0, 5.0, 3.0 or 1.3 MP (max. 3664 x 2748 to 1280 x 1024), progressive scan, 24-bit; software for still and video, focus stacking, stitching, HDR, measurement |
| Optional, not included | Auxiliary objectives 0.5x, 1.5x, 2x; WF15x, WF20x and reticle eyepieces; 0.5x C-mount; 2D travelling stage; objective protective glass |
Uses of the trinocular zoom stereo microscope
- Photo and video documentation of dissections and whole specimens
- Extended depth of field images of uneven samples by focus stacking
- Measurement of features on live or still images
- Inspection of small parts across a continuous zoom range
Scope of supply and ordering
The listing covers the trinocular zoom stereo microscope with its WF10x/22 pair and stage plates. The camera resolution, C-mount, auxiliary objectives, quantities and delivery are confirmed on the quotation.
Frequently asked questions
Which camera resolutions are listed?
Four digital eyepiece cameras: 10.0 MP (3664 x 2748), 5.0 MP (2592 x 1944), 3.0 MP (2048 x 1536) and 1.3 MP (1280 x 1024).
What does the 50/50 split mean?
Half of the light goes to the eyepieces and half to the camera port, so observation and recording happen together.
How is the working distance changed?
Auxiliary objectives change it: 0.5x gives 177 mm, 1.5x gives 47 mm and 2x gives 26 mm, against 105 mm as standard.
