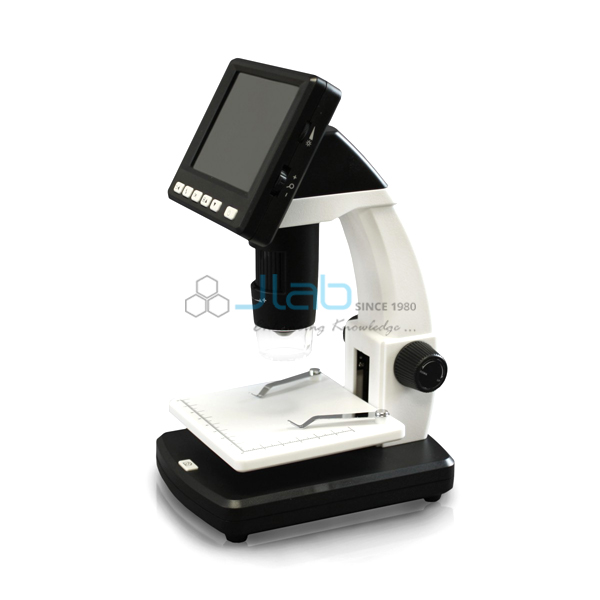

Stand Alone LCD Screen Digital Microscope
Product Code : JA-M-8138
The Stand Alone LCD Screen Digital Microscope (SKU JA-M-8138) is a battery-powered digital microscope supplied by JaincoLab that shows the image on its own 3.5 in LCD, so a group can look at a specimen together without a computer. A 5 MP sensor gives 10x to 300x, rising to 500x with digital zoom, and images and video save to a microSD card.
Specifications
Values from the listing for sensor, magnification, storage, lighting and power are set out below.
| Product | Stand Alone LCD Screen Digital Microscope |
| SKU | JA-M-8138 |
| Screen | 3.5 in LCD |
| Image sensor | 5 MP |
| Magnification | 10x-300x; up to 500x with digital zoom |
| Focus range | Manual, 10-50 mm |
| Capture resolution | 12M, 9M, 5M, 3M, 1.3M, VGA; still and video |
| Frame rate | Up to 30 fps under 600 lux |
| Storage | MicroSD slot, up to 32 GB SDHC |
| Output | TV output available |
| Light source | 8 LEDs with intensity control |
| Battery | 1050 mAh rechargeable Li-ion; 2.5-3 hours standalone use |
| Size and weight | 5.87 x 4.09 x 8.94 in; 2.43 lb |
| Software | Measurement software with on-screen display languages |
Uses of the standalone LCD digital microscope
- Showing coins, leaves, insects and fabrics to a small group on the screen
- Capturing images or video for project records on microSD
- Displaying on a TV for a whole class
- Measuring features on captured images with the software
Scope of supply and ordering
The listing covers the microscope with its LCD, rechargeable battery and bundled measurement software. Quantities, packing and delivery are confirmed on the quotation.
Frequently asked questions
Does it need a computer?
No. The image appears on the built-in 3.5 in LCD and saves to a microSD card; a computer is only needed for the measurement software.
How long does the battery last?
The 1050 mAh Li-ion battery gives 2.5 to 3 hours of standalone use per charge.
Related products
- LCD Screen Digital Handheld Microscope
- USB Digital Microscope with 5MP Camera
- 1080P Full HD Digital Microscope
- 1080P Full HD Wi-Fi Digital Microscope
USB, Wi-Fi and optical models are listed in the microscope range.
Request a quote
For a quotation on the Stand Alone LCD Screen Digital Microscope, send the quantity and destination via the contact page. Buying under a laboratory tender? Use our tenders page.
