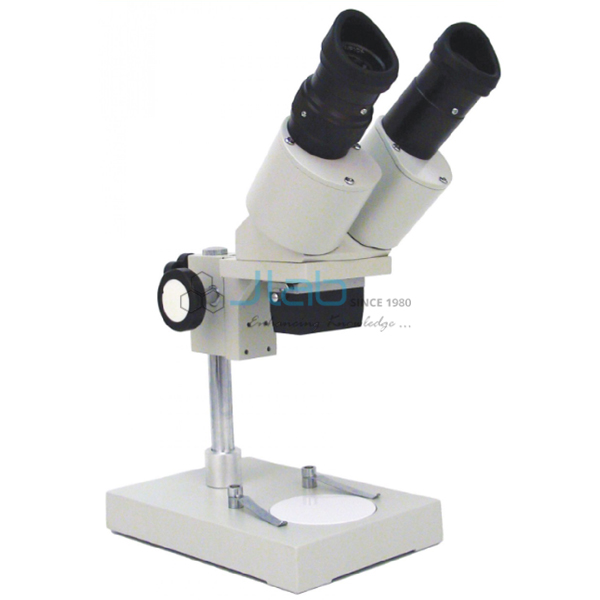

Series Binocular Stereo Microscope
Product Code : JA-M-8091
The Series Binocular Stereo Microscope (SKU JA-M-8091) is a compact stereo microscope supplied by JaincoLab for middle and secondary school classes. It gives an upright, three-dimensional image at one fixed magnification of 10x, 20x, 30x or 40x, set by the achromatic objective chosen, and its head is post-mounted so it rotates 180 degrees and adjusts for working distance. This version has no built-in light.
Specifications
The four listed versions share one binocular head and eyepiece pair and differ only in the objective.
| Product | Series Binocular Stereo Microscope |
| SKU | JA-M-8091 |
| Versions | Item 1: 1x objective, 10x. Item 2: 2x, 20x. Item 3: 3x, 30x. Item 4: 4x, 40x |
| Head | Binocular, inclined 45 degrees; post-mounted, rotates 180 degrees, adjustable for working distance; IPD 51-75 mm; diopter on left tube |
| Eyepieces | Paired WF10x with rubber eye guards; lockable with setscrew; 15x or 20x listed as alternatives |
| Objectives | Achromatic, parfocal and parcentred |
| Focusing | Rack and pinion with safety stop and tension adjustment; two focusing knobs |
| Stage | One 95 mm reversible black/white plate; locked-on stage clips |
| Illumination | None built in |
Uses of the series binocular stereo microscope
- Whole insects, seeds and leaves in middle school science
- Rocks, minerals and small objects under room light
- Shared class sets where eyepieces must stay fixed
Scope of supply and ordering
One unit is a single stereo microscope in the magnification version ordered, with the WF10x pair and the black/white plate. The version, eyepiece choice, quantities and delivery are stated on the quotation.
Frequently asked questions
How is the magnification chosen?
Each unit has one fixed objective, 1x, 2x, 3x or 4x, which with the paired WF10x eyepieces gives 10x, 20x, 30x or 40x; the version is chosen when ordering.
Does it have built-in lighting?
No. Illumination is listed as none, so specimens are viewed by room light or a separate lamp; the LED Top and Bottom Lights Binocular Stereo Microscope is the lit version.
Can students remove the eyepieces?
Both eyepieces can be locked in place with a setscrew, which stops them being removed or lost in class.
