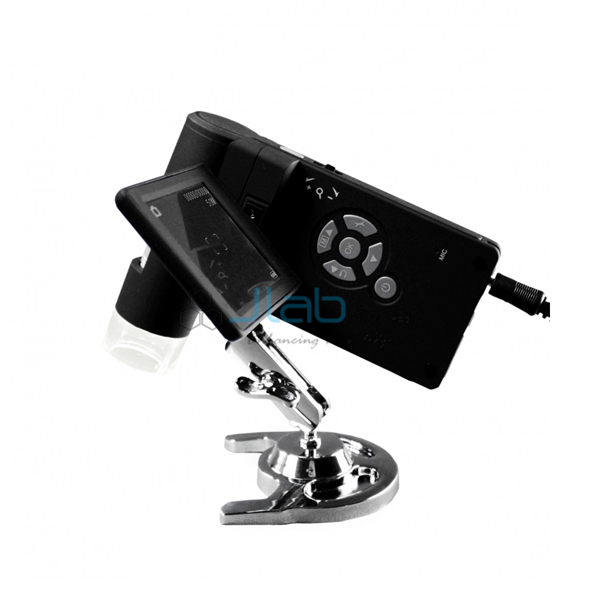

LCD Screen Digital Handheld Microscope
Product Code : JA-M-8137
The LCD Screen Digital Handheld Microscope (SKU JA-M-8137) is a portable digital microscope with its own 3 in screen, supplied by JaincoLab for field work and quick inspection. A 5 MP sensor with 10x to 300x optical magnification, extended to 1200x digitally, captures stills and video to a microSD card, and eight dimmable LEDs light the subject. An 800 mAh rechargeable battery gives 3.5 to 4 hours of use, making this handheld digital microscope practical away from a bench.
Specifications
The listing gives a 3 in LCD, a 5 MP image sensor, 10x to 300x optical magnification with up to 1200x digital, eight LEDs with intensity control, manual focus from 10 mm to 50 mm, capture resolutions from VGA to 12M, TV output, microSD support to 32 GB and an 800 mAh Li-ion battery.
| Product | LCD Screen Digital Handheld Microscope |
| SKU | JA-M-8137 |
| Screen | 3 in LCD |
| Image sensor | 5 megapixels |
| Magnification | 10x to 300x optical; up to 1200x digital (4x digital zoom) |
| Focus | Manual, 10 mm to 50 mm |
| Illumination | 8 LEDs with intensity control |
| Capture resolutions | 12M, 9M, 5M, 3M, 1.3M, VGA |
| Frame rate | Up to 30 frames per second (at 600 lux) |
| Storage and output | MicroSD slot up to 32 GB SDHC; TV output |
| Battery | 800 mAh rechargeable Li-ion, 3.5 to 4 hours standalone |
| Software | Bundled capture software with measurement |
| Weight | 0.88 lb |
Applications of the handheld digital microscope
Because it needs no stand, eyepiece or mains power, the handheld digital microscope is used for field study of leaves, insects and soil, for inspecting prints, coins, fabrics and circuit boards, and for showing magnified images to a group on the built-in screen or a TV.
- Field study of plants, insects and soil
- Inspection of circuit boards and small parts
- Examining prints, stamps, coins and fabrics
- Classroom display through the TV output
- Measuring features with the bundled software
Scope of supply
One unit is one LCD screen digital handheld microscope with its rechargeable battery and bundled software as listed. Stand, cables, microSD card, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
The quotation confirms the minimum order quantity, lead time and packing for the quantity and delivery destination you give. Orders from individual schools, bulk purchases for colleges and education programmes, and tender requirements are all supplied, with export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What magnification does it give?
10x to 300x optical, extended to 1200x with the 4x digital zoom.
How is the image saved?
Stills and video save to a microSD card of up to 32 GB, at resolutions from VGA to 12M.
How long does the battery last?
The 800 mAh Li-ion battery gives 3.5 to 4 hours of standalone use.
What should a quotation request include?
Send the SKU JA-M-8137, the quantity and the delivery destination.
