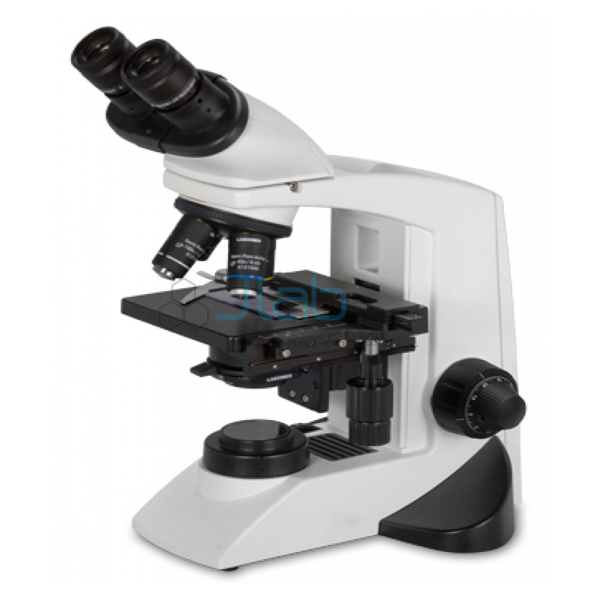

Binocular Laboratory Microscope
Product Code : JA-M-943
The Binocular Laboratory Microscope (SKU JA-M-943) has a 45-degree inclined binocular head rotating through 360 degrees, a quadruple nosepiece with achromatic 4x, 10x and 40x SL objectives, and a 115 mm fixed square stage with a detachable graduated stage that moves slides up to 40 x 75 mm. Illumination is by a 50 mm mirror or a sub-stage illuminator with a 15 W lamp for 220/110 V. JaincoLab manufactures this binocular laboratory microscope for school and college labs.
Specifications
Specification: 45-degree inclined binocular head rotatable through 360 degrees; quadruple nosepiece with click stops; 115 mm fixed square stage plus detachable graduated stage with 40 x 75 mm slide movement; 50 mm mirror interchangeable with a 15 W sub-stage illuminator; achromatic 4x, 10x and 40x SL; three Huygenian eyepieces.
| Product | Binocular Laboratory Microscope |
| SKU | JA-M-943 |
| Head | Binocular, 45-degree inclined, rotatable through 360 degrees |
| Nosepiece | Quadruple with accurate centring and positive click stops |
| Stage | Fixed square stage 115 mm; detachable graduated stage, slide movement up to 40 x 75 mm |
| Illumination | Plano-concave 50 mm mirror on gimbal mount; interchangeable with sub-stage illuminator, 15 W lamp, 220/110 V |
| Objectives | Achromatic 4x, 10x and 40x SL |
| Eyepieces | Huygenian, any three of 5x, 6x, 10x, 15x or 16x |
Applications of the binocular laboratory microscope
Binocular viewing makes longer practicals less tiring, so colleges and senior school labs use this microscope for detailed work on prepared slides, moving the slide with the graduated stage and switching between mirror and lamp as room light allows.
- College and senior school biology practicals
- Prepared slide study up to the 40x objective
- Systematic scanning with the graduated stage
- Labs with or without reliable daylight
- Teacher demonstration microscope
Scope of supply
One unit is one binocular laboratory microscope with three objectives and three chosen eyepieces; the sub-stage illuminator is interchangeable with the mirror. Accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
The quotation confirms the minimum order quantity, lead time and packing for the quantity and delivery destination you give. Orders from individual schools, bulk purchases for colleges and education programmes, and tender requirements are all supplied, with export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which objectives are included?
Achromatic 4x, 10x and 40x SL on a quadruple nosepiece.
What lighting options are there?
A 50 mm plano-concave mirror, interchangeable with a sub-stage illuminator using a 15 W lamp for 220/110 V.
How far can the slide be moved?
The detachable graduated stage moves slides up to 40 x 75 mm.
What should a quotation request include?
Send the SKU JA-M-943, your eyepiece choice, the lighting option, the number of microscopes and the delivery destination.
