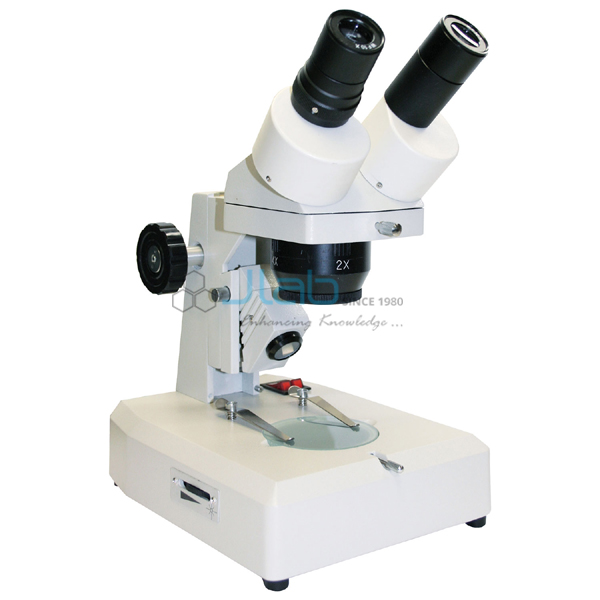

Dual Power Binocular Stereo Microscope 2X and 4X Objectives
Product Code : JA-M-8115
The Dual Power Binocular Stereo Microscope 2X and 4X Objectives (SKU JA-M-8115) is the higher-power model of the dual power stereo series supplied by JaincoLab. The 2x and 4x objectives give 20x and 40x with the WF10x pair, and optional eyepieces take it to 60x or 80x, while the 80 mm working distance keeps room for tools.
Specifications
For the 2x/4x model the listing gives these values.
| Product | Dual Power Binocular Stereo Microscope 2X and 4X Objectives |
| SKU | JA-M-8115 |
| Magnification | 20x and 40x; 30x and 60x with optional WF15x; 40x and 80x with optional WF20x |
| Head | Binocular, inclined 45 degrees, rotates 360 degrees; IPD 55-75 mm |
| Eyepieces | Paired WF10x; diopter on left tube; rubber eyeshields |
| Objectives | 2x and 4x on a turret |
| Working distance | 80 mm |
| Illumination | 3-way LED, transmitted, incident or dual, with intensity control |
| Power | Listed as 110 V |
| Stage | Reversible black/white and frosted plates; lock-on clips |
| Body | Cast aluminium, grey enamel |
| Packing | Fitted foam box, dust cover, instruction manual |
Uses of the 20x and 40x stereo microscope
- Fine dissection of insect mouthparts and flower structures
- Mineral grains and crystal faces at 40x
- Small component inspection in technical labs
- Up to 80x with the optional WF20x eyepieces
Scope of supply and ordering
The listing covers one microscope in its fitted foam box with the WF10x pair, stage plates, dust cover and manual. Optional eyepieces, supply voltage, quantities and delivery appear on the quotation.
Frequently asked questions
What is the highest magnification possible?
80x, using the optional WF20x eyepieces with the 4x objective; the standard WF10x pair gives 20x and 40x.
Is the working distance reduced at 40x?
The listing gives an 80 mm working distance for this model without distinguishing between the two objectives.
