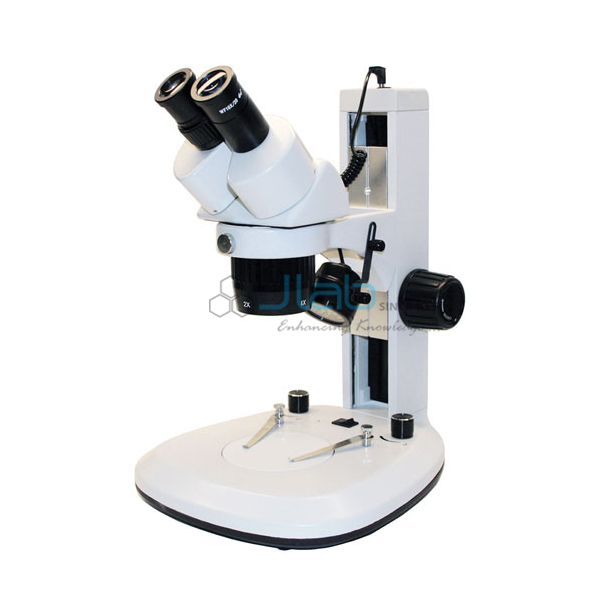

3 Way LED Light Dual Power Stereo Microscope
Product Code : JA-M-8116
The 3 Way LED Light Dual Power Stereo Microscope (SKU JA-M-8116) is a binocular stereo microscope supplied by JaincoLab with two magnifications on a turret and LED lighting that can be used from above, below or both. It comes as 10x and 20x, 10x and 30x, or 20x and 40x, and has a 100 mm working distance that auxiliary objectives can change. This 3 way LED light dual power stereo microscope suits school and college dissection and specimen work.
Specifications
Listed: a 45-degree binocular head rotating 360 degrees with 55 to 75 mm interpupillary distance, WF10x/20 mm high eyepoint eyepieces, objective pairs 1x/2x, 1x/3x or 2x/4x, a 100 mm working distance, rack and pinion focusing over 100 mm and 95 mm stage plates, with auxiliary lenses available.
| Product | 3 Way LED Light Dual Power Stereo Microscope |
| SKU | JA-M-8116 |
| Versions | 20x and 40x; 10x and 30x; 10x and 20x |
| Head | Binocular, 45 degrees, rotates 360 degrees; IPD 55-75 mm; +/-5 dioptre on left tube |
| Eyepieces | WF10x/20 mm pair, high eyepoint; left eyepiece lockable |
| Objectives | Turret pairs 1x/2x, 1x/3x or 2x/4x |
| Working distance | 100 mm standard |
| Focusing | Rack and pinion with slip clutch, tension adjustment, 100 mm range |
| Stage | 95 mm glass plate and 95 mm reversible black and white plate, locked-on clips |
| Illumination | Top incident and bottom transmitted LED, each dimmable; transmitted, incident or dual |
| Optional (not included) | WF15x/15 mm, WF20x/10 mm, reticle eyepieces; auxiliary objectives 0.5x, 1.5x, 2x; 2D travelling stage |
Applications of the 3 way LED stereo microscope
Three lighting modes let one microscope handle opaque specimens with top light, translucent slides and small aquatic organisms with bottom light, and mixed samples with both, while the 100 mm working distance leaves room for dissecting tools.
- Dissection practicals with room for tools
- Aquatic organisms under transmitted light
- Insects, seeds and minerals under top light
- Botany and zoology classes
- Small component inspection
Scope of supply
One unit is one dual power stereo microscope in the version ordered, with WF10x eyepieces, two stage plates and LED lighting. Optional eyepieces, auxiliary objectives, the travelling stage, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, lead time and packing are confirmed on each quotation for the quantity ordered and the delivery destination. JaincoLab supplies single-school orders as well as bulk requirements for schools, colleges and education projects, and exports to buyers in Africa, the Middle East and South and South-East Asia.
JaincoLab supports tender contractors as well as institutions: we manufacture and export laboratory equipment for Ministry of Education projects, World Bank-funded tenders and United Nations programmes, executed successfully in many countries, and we specialise in turnkey laboratory set-ups. Contact us through the tenders page early in your bid preparation.
Frequently asked questions
What does 3 way lighting mean?
The LEDs can light the specimen from above (incident), from below (transmitted) or both, each with its own brightness control.
Can the working distance be changed?
Yes, auxiliary objectives of 0.5x, 1.5x and 2x are listed as optional extras.
Which magnification versions are offered?
20x and 40x, 10x and 30x, or 10x and 20x.
What should a quotation request include?
Send the SKU JA-M-8116, the version and any optional items, the quantity and the delivery destination.
Related products
- LED Illumination Dual Power Binocular Stereo Microscope
- Tri Power LED Stereo Microscope
- Dual Power Trinocular Stereo Microscope
- Cordless LED Binocular Stereo Microscope
Browse the full microscopes range for other models, heads and accessories.
Request a quote
To request a quotation for the 3 Way LED Light Dual Power Stereo Microscope (JA-M-8116), send the quantity, any optional items and the delivery destination through the JaincoLab contact page.
