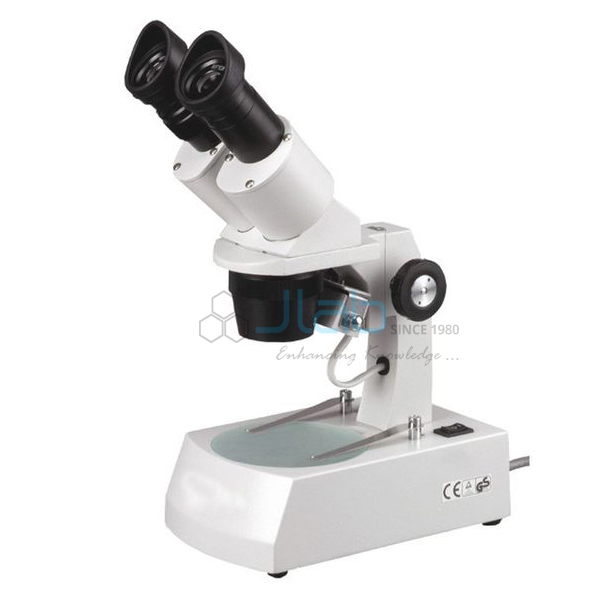

Binocular Stereo Microscope
Product Code : JA-M-952
The Binocular Stereo Microscope (SKU JA-M-952) gives an upright three-dimensional view at 20x and 40x with a flat field. Its binocular head is inclined at 45 degrees with adjustable interpupillary distance, focusing is by rack and pinion, two pairs of 2x and 4x objectives change on a sliding nosepiece, and extra wide-field WF 10x or 15x eyepieces are provided. A version on a stable base with built-in incident and transmitted illumination is also listed. JaincoLab manufactures this binocular stereo microscope.
Specifications
The microscope has a 45-degree inclined binocular head with adjustable interpupillary distance, rack and pinion focusing, 20x and 40x flat-field magnification from 2x and 4x objective pairs on a sliding nosepiece, and WF 10x or 15x eyepieces; the illuminated-base version adds incident and transmitted light.
| Product | Binocular Stereo Microscope |
| SKU | JA-M-952 |
| Head | Binocular, 45-degree inclined, adjustable interpupillary distance |
| Focusing | Rack and pinion |
| Magnification | 20x and 40x, flat field |
| Objectives | 2 sets, 2x and 4x, on a sliding nosepiece |
| Eyepieces | Extra wide field WF 10x or 15x |
| Version with illumination | Stable base with built-in incident (EPI) and sub-stage (transmitted) light |
Applications of the binocular stereo microscope
Students use it to examine insects, seeds, flowers, fossils and rock surfaces, and for fine dissection, switching from 20x to 40x by sliding the nosepiece; the illuminated version lights both opaque and translucent specimens.
- Insect, seed and flower study
- Fine dissection
- Rock, mineral and fossil surfaces
- Opaque and translucent specimens with the illuminated base
- College zoology, botany and geology labs
Scope of supply
One unit is one binocular stereo microscope with two objective pairs and the chosen eyepieces, in the plain or illuminated-base version. Accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, lead time and packing are confirmed on each quotation for the quantity ordered and the delivery destination. JaincoLab supplies single-school orders as well as bulk requirements for schools, colleges and education projects, and exports to buyers in Africa, the Middle East and South and South-East Asia.
JaincoLab manufactures and exports laboratory equipment for Ministry of Education programmes, World Bank-funded tenders and United Nations projects, and has executed these supplies successfully in many countries. Contractors bidding for such tenders can contact JaincoLab for specifications, quotations and turnkey tender supply.
Frequently asked questions
What magnifications does it give?
Standard 20x and 40x with a flat field.
How are the objectives changed?
Two sets of 2x and 4x objectives are selected with a sliding nosepiece.
Is there an illuminated version?
Yes. A version on a stable base with built-in incident and transmitted illumination is listed.
What should a quotation request include?
Send the SKU JA-M-952, the version and eyepiece choice, the number of microscopes and the delivery destination.
