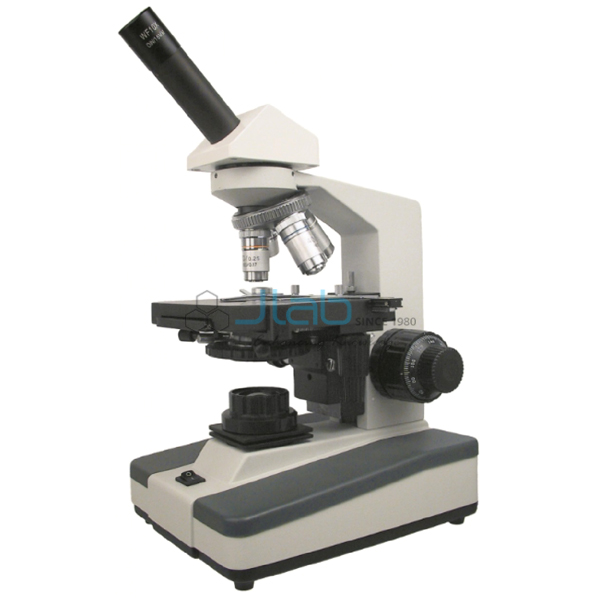

LED Kohler Illumination Monocular Microscope
Product Code : JA-M-8061
The LED Kohler Illumination Monocular Microscope (SKU JA-M-8061) is a compound microscope for senior school and college biology, supplied by JaincoLab. Kohler illumination with a field diaphragm and an LED source gives even lighting across the field, and four achromatic DIN objectives up to 100x oil provide 40x, 100x, 400x and 1000x with the WF10x eyepiece. A built-in mechanical stage and a focusable 1.25 NA Abbe condenser make this LED Kohler illumination monocular microscope suited to oil immersion work.
Specifications
Listed: a monocular head at 45 degrees rotating 360 degrees, a locked-on WF10x eyepiece with calibrated pointer, a 4-position reverse nosepiece, achromatic DIN 4x, 10x, 40xR and 100xR oil objectives, separate coarse and fine focusing, a 14.3 x 13.3 cm mechanical stage, a 1.25 NA Abbe condenser with iris and LED Kohler illumination.
| Product | LED Kohler Illumination Monocular Microscope |
| SKU | JA-M-8061 |
| Head | Monocular, inclined at 45 degrees, rotates 360 degrees; Siedentopf binocular head also listed as an option |
| Eyepiece | Locked-on WF10x with calibrated pointer |
| Nosepiece | 4-position reverse, positive click stops |
| Objectives | Achromatic DIN 4x, 10x, 40xR, 100xR (oil); 40xR and 100xR retractable |
| Magnification | 40x, 100x, 400x, 1000x |
| Focusing | Separate coarse and fine; rack and pinion coarse; safety rack stop; tension adjustment |
| Stage | Built-in X-Y mechanical stage 14.3 x 13.3 cm, 0.1 mm increments, travel 7.6 x 3.8 cm |
| Condenser | Focusable 1.25 NA Abbe, rack and pinion, iris diaphragm |
| Illumination | Koehler, field diaphragm; built-in LED with intensity control; corded |
| Size | 16 in high; base 8.8 x 7 in |
| Packing list | Microscope with LED, dust cover, immersion oil, WF10x eyepiece, user manual |
Applications of the LED Kohler illumination monocular microscope
College and senior school laboratories use it for stained slides at high power, including bacteria and blood smears under 100x oil immersion for teaching, where even Kohler lighting and the calibrated mechanical stage help students locate and revisit fields.
- Stained bacteria and blood smear slides for teaching
- Plant and animal tissue sections
- Cell division slides in senior school biology
- B.Sc botany, zoology and microbiology practicals
- Nursing and paramedical teaching labs
Scope of supply
One unit is one monocular LED Kohler microscope with the packing list items above: microscope with built-in LED, dust cover, immersion oil, WF10x eyepiece and user manual. The binocular head option, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
The quotation confirms the minimum order quantity, lead time and packing for the quantity and delivery destination you give. Orders from individual schools, bulk purchases for colleges and education programmes, and tender requirements are all supplied, with export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What magnifications does it give?
40x, 100x, 400x and 1000x with the WF10x eyepiece and the 4x, 10x, 40xR and 100xR oil objectives.
Is a binocular version available?
The listing says it is available with either a monocular or a Siedentopf binocular head; state which you need.
What comes in the box?
The microscope with built-in LED, a dust cover, immersion oil, the WF10x eyepiece and a user manual.
What should a quotation request include?
Send the SKU JA-M-8061, the head type, the quantity and the delivery destination.
