Logic Training Board
Product Code : JA-DET-1513

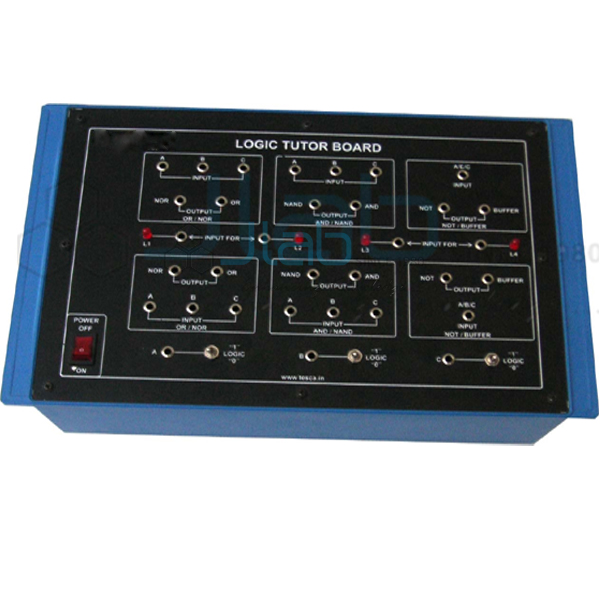

Logic Training Board
The offered range is known for studying simple logic functions and theorems of Boolean algebra and to compare the truth table with experimental results.
This range aids in providing new method of training students in the basic theory of digital circuits and making them familiar with basic experiments in digital circuits.
Object:
OR/NOR function
AND/NAND function
NOT/BUFFER function
Simple function of several variables
Distributive law
Commutative law
Associative law
De morgan's theorem
Features :
The board consists of the following built-in parts:
± 5 V D.C. at 500 mA, IC regulated power supply
Two, 3-input NAND gates followed by an inverter to give 3-input AND/NAND gates
Two, 3-input NOR gates followed by an inverter to give 3-input OR/NOR gates
Two, NOT gates followed by another NOT gate to give BUFFER outputs
Switches for logic selection
Adequate no. of other electronic components
Mains ON/OFF switch, fuse and jewel light
The unit is operative on 230V ±10 % at 50Hz A.C. mains
Adequate no. of patch cords stackable from rear both ends 4 mm spring loaded plug length ½ meter
Good quality, reliable terminal/sockets are provided at appropriate places on panel for connections & observation of waveforms
Strongly supported by detailed operating instructions, giving details of object, theory, design procedures, report suggestions and book references.
