BCD to Seven Segment Display
Product Code : JA-DET-1527

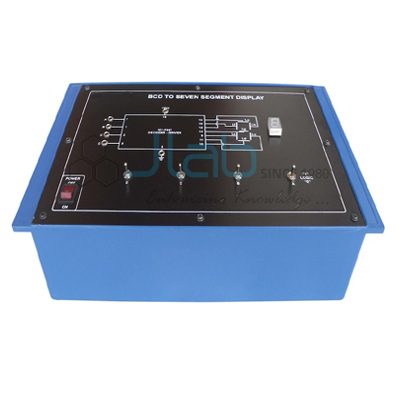

The BCD to seven segment display board demonstrates how a 7446/47A decoder driver turns a 4-bit BCD input into a decimal digit on a common-anode LED display. Four SPDT switches give the logic 1 and 0 inputs for variables A, B, C and D, and a 5 V, 100 mA regulated supply is built in (SKU JA-DET-1527).
Specifications
The display board is listed with:
| Product | BCD to Seven Segment Display |
| SKU | JA-DET-1527 |
| Display | Seven-segment, common anode, LED |
| Decoder driver | IC 7446/47A (45 diodes, 16 resistors and 7 transistors internally) |
| Inputs | Four SPDT switches for variables A, B, C and D (logic 1 and 0) |
| DC supply | +5 V at 100 mA, IC regulated |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch and neon indicator |
Scope of supply and ordering
The listing covers the BCD to seven segment display board, supplied by JaincoLab.
Frequently asked questions
Which decoder driver IC is used?
The 7446/47A BCD to seven segment decoder driver.
What type of display is fitted?
A common-anode LED seven-segment display.
How are the BCD inputs set?
With four SPDT switches for variables A, B, C and D, each giving logic 1 or 0.
