8-Bit Analog to Digital Converter
Product Code : JA-DET-1521

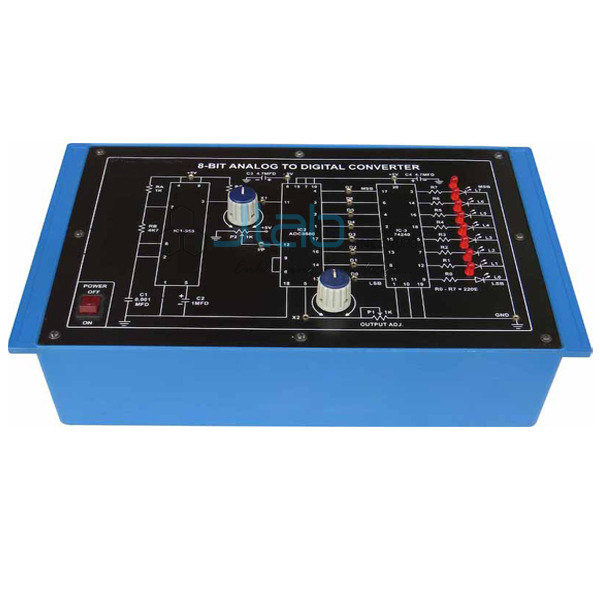

The 8-bit analog to digital converter trainer converts an analog signal into an 8-bit digital signal with the ADC 0800, a successive approximation converter. The board carries a 555 timer, a 74240 buffer, LED status indicators and a ±5 V DC, 50 mA regulated supply, and is used with a 3¾ digit digital multimeter (SKU JA-DET-1521).
Specifications
The 8-bit ADC board is listed with:
| Product | 8-Bit Analog to Digital Converter |
| SKU | JA-DET-1521 |
| Converter IC | ADC 0800, successive approximation |
| DC supply | ±5 V DC at 50 mA, IC regulated, internally connected |
| Timer | IC 555 |
| Buffer | IC 74240 |
| Indicators | LEDs for status |
| Other apparatus required | Digital multimeter, 3¾ digit |
Scope of supply and ordering
The listing covers the 8-bit ADC board with operating instructions, supplied by JaincoLab; a digital multimeter is listed as other apparatus required.
Frequently asked questions
Which ADC IC is used?
The ADC 0800, which converts by successive approximation.
What is the output resolution?
An 8-bit digital output; LEDs show the status.
What else is needed?
A 3¾ digit digital multimeter.
