Digital to Analog Converter
Product Code : JA-DET-1516

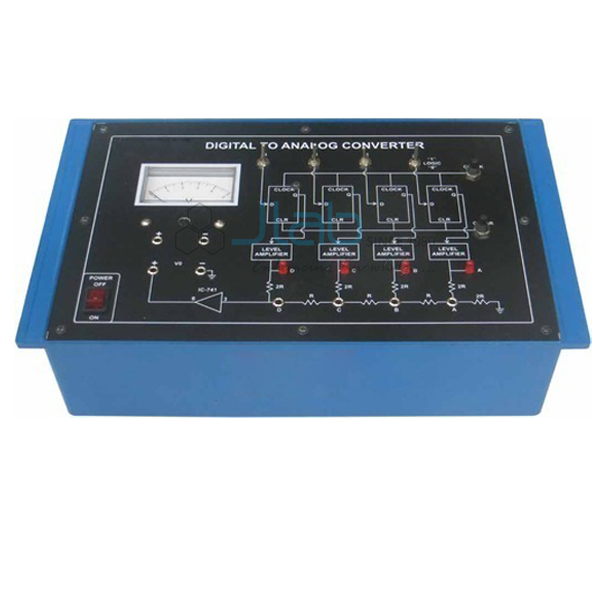

The digital to analog conversion trainer is a self-contained board for studying the basic principle of D/A conversion. Four switches set the binary input, which is held in four D-type flip-flops and fed through four level amplifiers, and the analog output is read directly on a 0-5 V DC voltmeter while four LEDs show the input states (SKU JA-DET-1516).
Specifications
The DAC board is listed with:
| Product | Digital to Analog Converter |
| SKU | JA-DET-1516 |
| DC supplies | +5 V at 250 mA (IC regulated); +10 V and -10 V at 50 mA; internally connected |
| Meter | DC voltmeter, 65 mm rectangular dial, 0-5 V |
| Storage register | Four D-type flip-flops |
| Level amplifiers | Four |
| Inputs | Four switches for binary logic input states |
| Indicators | Four LEDs for the input status |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
| Other apparatus | None required; the board is self-contained |
Scope of supply and ordering
The listing covers the self-contained DAC board with patch cords and operating instructions, supplied by JaincoLab.
Frequently asked questions
How is the digital input entered?
With four switches whose states are held in a storage register of four D-type flip-flops.
How is the analog output read?
Directly as a voltage on the built-in 0-5 V DC voltmeter.
How many bits does the DAC board use?
Four, with an LED showing each input state.
