8-Bit Multiplying Digital to Analog Converter
Product Code : JA-DET-1522

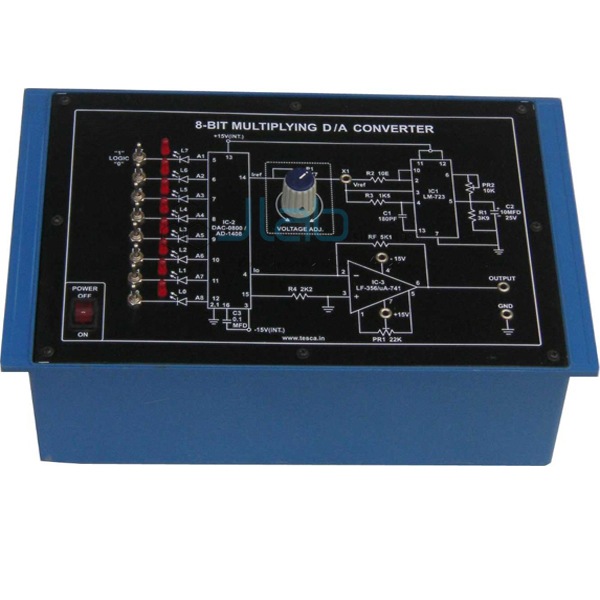

The 8-bit multiplying digital to analog converter trainer uses the AD1408 to produce an analog output that represents the product of an 8-bit digital input and a reference source. Switches set the input data, LEDs show the binary input, and a 741 op-amp, a 723 voltage regulator and ±15 V and +5 V regulated supplies are built in (SKU JA-DET-1522).
Specifications
Listed parts of the multiplying DAC board:
| Product | 8-Bit Multiplying Digital to Analog Converter |
| SKU | JA-DET-1522 |
| DAC IC | AD1408, 8-bit |
| Op-amp | IC 741 |
| Voltage regulator | IC 723 |
| DC supplies | ±15 V DC and +5 V DC at 50 mA, IC regulated, internally connected |
| Inputs | SPDT switches for logic selection / input data |
| Indicators | LEDs for status and binary data input |
| Other apparatus required | Digital multimeter, 3¾ digit |
Scope of supply and ordering
The listing covers the multiplying DAC board with operating instructions, supplied by JaincoLab; a digital multimeter is listed as other apparatus required.
Frequently asked questions
Which DAC IC does the board use?
The AD1408 8-bit digital to analog converter.
What does multiplying mean on this board?
The analog output represents the product of the 8-bit digital input and the reference source.
What else is needed?
A 3¾ digit digital multimeter.
