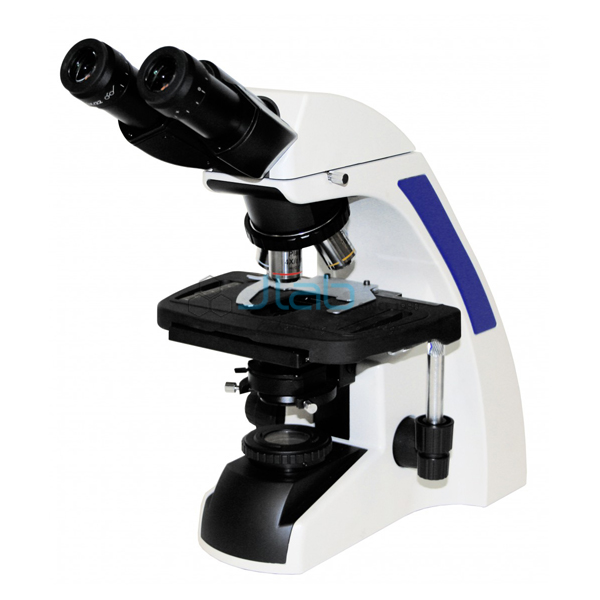

Advanced Infinity Corrected Binocular Microscope
Product Code : JA-M-8082
The Advanced Infinity Corrected Binocular Microscope (SKU JA-M-8082) is a research-grade laboratory microscope supplied by JaincoLab with five infinity-corrected high contrast (HC) plan achromatic DIN objectives from 4x to 100x oil on a quintuple nosepiece. Koehler illumination from a 5 W LED lights the specimen evenly, and optional kits extend it to darkfield, phase contrast and polarisation work.
Specifications
Listed values for the advanced binocular model are shown here.
| Product | Advanced Infinity Corrected Binocular Microscope |
| SKU | JA-M-8082 |
| Head | Binocular; tube length unchanged by IPD adjustment; 30 degrees, rotates 360 degrees; tubes swivel up or down; IPD 48-75 mm |
| Eyepieces | WF10x/22 mm high eyepoint with eyeguards; both diopter adjustable |
| Nosepiece | Reversed quintuple, ball bearings, internal click stops |
| Objectives | Infinity-corrected HC plan achromatic DIN 4x/0.10, 10x/0.25, 20x/0.40, 40xR/0.65, 100xR/1.25 oil (infinity/0.17); 40xR and 100xR retractable |
| Magnification | 40x, 100x, 200x, 400x, 1000x |
| Focusing | Low coaxial knobs; 37.7 mm per coarse turn; 0.1 mm per fine turn, 1 micron graduation; range 16 mm; tension adjustment |
| Stage | 216 x 150 mm double-layer; travel 75 x 55 mm; non-extending rack; graphite surface |
| Illumination | Koehler with field diaphragm; 1.25 NA Abbe on rack and pinion; graduated iris; 5 W LED with intensity control |
| Stand | Metal frame, one-piece arm and base, carrying handle, cord holder, antifungal treatment |
| Optional | Dark field kit, phase contrast kit, polarising kit, reticule eyepieces (not included) |
Uses of the advanced infinity binocular microscope
- High-contrast brightfield study of stained sections
- Phase contrast observation of live, unstained cells with the optional kit
- Darkfield and polarised light work with the optional kits
- Research and postgraduate laboratory slide work up to 1000x
Scope of supply and ordering
One unit is the binocular microscope with two eyepieces and five HC plan objectives. Kits, reticules, quantities and delivery are confirmed on the quotation.
Frequently asked questions
What do the HC plan objectives offer?
They are infinity-corrected high contrast plan achromats, giving a flat field across the view; the 20x adds a 200x step between 100x and 400x.
Which contrast methods are possible?
Brightfield as supplied; darkfield, phase contrast and polarisation with the optional kits listed for this model.
