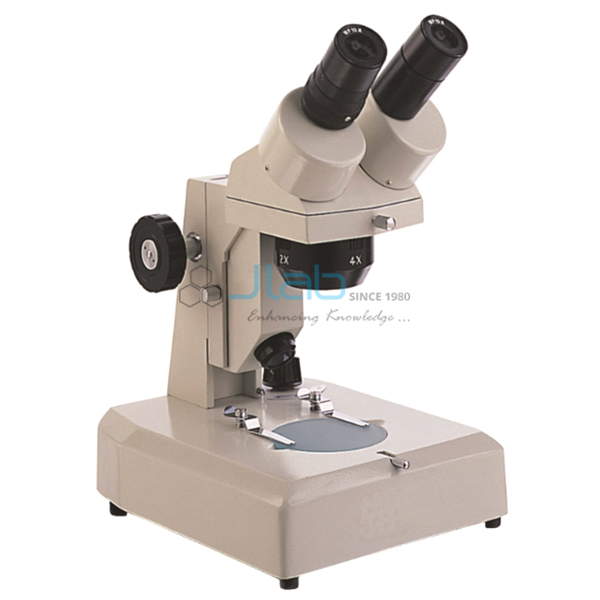

Dual Power Binocular Stereo Microscope
Product Code : JA-M-8108
The Dual Power Binocular Stereo Microscope (SKU JA-M-8108) is a stereo microscope supplied by JaincoLab with a turret carrying one of three objective pairs, 1x/2x, 1x/3x or 2x/4x, for 10x and 20x, 10x and 30x, or 20x and 40x. It has an 80 mm working distance, a 90 mm focus range and top and bottom lights that are switched and dimmed separately.
Specifications
The dual power binocular stereo microscope is listed with the following values.
| Product | Dual Power Binocular Stereo Microscope |
| SKU | JA-M-8108 |
| Magnification versions | 10x and 20x; 10x and 30x; 20x and 40x |
| Objective pairs | 1x/2x, 1x/3x or 2x/4x, switched by turret |
| Head | Binocular, inclined 45 degrees, rotates 360 degrees; synchronised IPD adjustment 55-75 mm; diopter on left tube, right fixed |
| Eyepieces | Paired WF10x, lockable with setscrew; WF15x and WF20x optional |
| Working distance | 80 mm |
| Focusing | Heavy-duty rack and pinion with slip clutch; two knobs with tension adjustment; 90 mm focus range |
| Stage | 75 mm frosted glass plate and 75 mm reversible black/white plate; locked-on spring clips |
| Illumination | Diagonally adjustable top light and transmitted bottom light, each dimmable; transmitted, incident or both; main switch plus separate switches |
| Size | 14 in high; base 7 x 8.75 in |
Uses of the dual power binocular stereo microscope
- Moving from overview to detail by turning the turret
- Dissection with tools under the 80 mm working distance
- Balancing top and bottom light for semi-transparent specimens
- Class sets where eyepieces must stay locked
Scope of supply and ordering
One unit is the microscope with the objective pair ordered, the WF10x pair and both 75 mm plates. Optional eyepieces, quantities and delivery are stated on the quotation.
Frequently asked questions
Which objective pairs can be ordered?
Three are listed: 1x and 2x for 10x and 20x, 1x and 3x for 10x and 30x, or 2x and 4x for 20x and 40x with the WF10x eyepieces.
Can the two lights be dimmed separately?
Yes. The top and bottom lights each have their own switch and intensity control, in addition to the main on/off switch.
