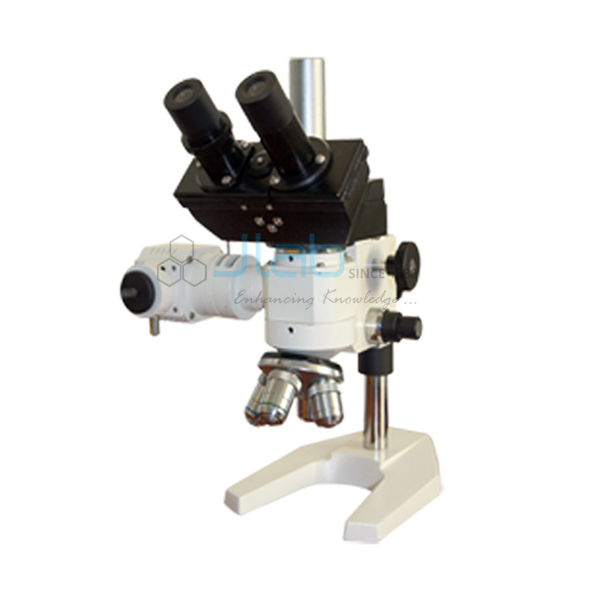

Trinocular Metallurgical Microscope
Product Code : JA-M-985
The Trinocular Metallurgical Microscope (SKU JA-M-985) is an upright reflected-light microscope for metals and other opaque materials, with a third port and a P7x eyepiece for microphotography. Its low coaxial stage takes specimens up to 65 mm thick, and a 6 V 20 W halogen vertical illuminator lights the surface from above. Engineering colleges, polytechnics and material testing laboratories use this trinocular metallurgical microscope for metallography teaching and for recording images of samples.
Specifications
The product data lists a 45-degree trinocular head, a quadruple revolving nosepiece with centring and click stops, a large low coaxial mechanical stage for specimens up to 65 mm thick, a 6 V 20 W halogen vertical illuminator and achromatic M4x, M10x and M40x objectives with H6x, WF10x and P7x eyepieces.
| Product | Trinocular Metallurgical Microscope |
| SKU | JA-M-985 |
| Head | Trinocular, inclined at 45 degrees |
| Nosepiece | Quadruple revolving, accurate centring, positive click stops |
| Stage | Large low coaxial mechanical stage, X-Y movement; specimens up to 65 mm thick |
| Illumination | Bright field vertical illuminator, 6 V 20 W halogen; aperture diaphragm, filter slots, bulb centring |
| Objectives | Achromatic M4x, M10x, M40x |
| Eyepieces | H6x - WF10x (paired); P7x for microphotography |
Applications of the trinocular metallurgical microscope
Students and technicians use it to study the microstructure of polished metal samples and to photograph what they see: the vertical illuminator gives reflected bright field light, and the trinocular port carries a camera while the binocular eyepieces stay in use.
- Metallography practicals on polished and etched samples
- Recording microstructure images for reports
- Inspection of castings, welds and heat-treated parts
- Material science teaching in engineering colleges
- Quality inspection training in polytechnics
Scope of supply
One unit is one trinocular metallurgical microscope with the listed head, nosepiece, stage, halogen vertical illuminator, three objectives and eyepieces. A camera, adapter, spare bulbs, accessories and quantities are confirmed on the quotation.
Packing, MOQ and lead time
The quotation confirms the minimum order quantity, lead time and packing for the quantity and delivery destination you give. Orders from individual schools, bulk purchases for colleges and education programmes, and tender requirements are all supplied, with export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
How thick a specimen will the stage take?
The low coaxial mechanical stage is listed for specimens up to 65 mm thick.
Can photographs be taken?
Yes. The trinocular head and a P7x microphotography eyepiece are listed; the camera and adapter are confirmed on the quotation.
Which objectives are fitted?
Achromatic metallurgical objectives M4x, M10x and M40x.
What should a quotation request include?
Send the SKU JA-M-985, whether a camera is required, the quantity and the delivery destination.
