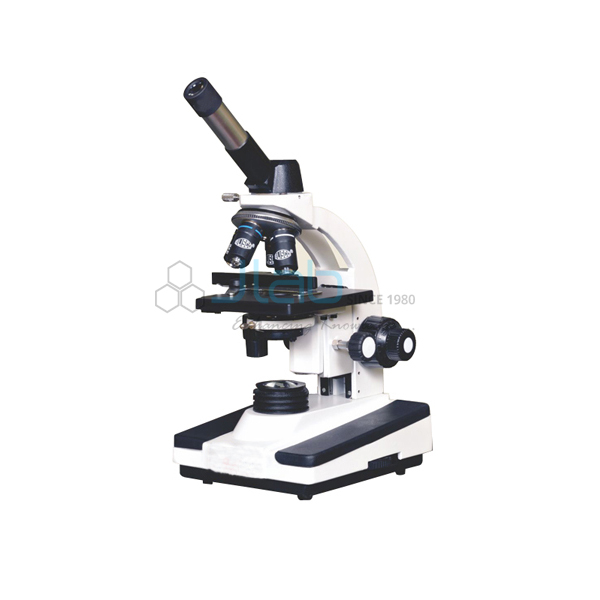

Monocular Inclined Microscope
Product Code : JA-M-868
The Monocular Inclined Microscope (SKU JA-M-868) has a 45-degree inclined monocular head that rotates through 360 degrees, a quadruple nosepiece with click stops and achromatic 4x, 10x and 40x SL objectives. A fixed 115 x 115 mm stage with two spring clips and a 50 mm plano-concave mirror, exchangeable for an optional sub-stage illuminator, complete the stand. This monocular inclined microscope suits school and college biology labs, and JaincoLab manufactures it.
Specifications
The microscope has a 45-degree inclined monocular head rotatable through 360 degrees, a quadruple nosepiece, a fixed 115 x 115 mm stage with 2 spring-mounted clips, a 50 mm plano-concave mirror on gimbal mount, achromatic 4x, 10x and 40x SL objectives and any three listed Huygenian eyepieces.
| Product | Monocular Inclined Microscope |
| SKU | JA-M-868 |
| Head | Monocular, 45-degree inclined, rotatable through 360 degrees |
| Nosepiece | Quadruple, with accurate centring and positive click stops |
| Stage | Fixed square stage, 115 x 115 mm, with 2 spring-mounted clips |
| Illumination | Plano-concave 50 mm mirror on gimbal mount; sub-stage illuminator optional |
| Objectives | Achromatic 4x, 10x and 40x SL |
| Eyepieces | Huygenian, any three of 5x, 6x, 10x, 15x or 16x |
Applications of the monocular inclined microscope
The inclined head lets pupils sit upright while they observe, and the 4x, 10x and 40x objectives take a class from locating a specimen at low power to studying cell detail, so the microscope covers most school and junior college practical slides.
- Cell and tissue observation in biology practicals
- Temporary mounts and prepared slides
- Pollen, algae and pond-water organisms
- School and college practical examinations
- Science projects
Scope of supply
One unit is one monocular inclined microscope with three objectives and the three chosen eyepieces; the sub-stage illuminator is optional. Accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, lead time and packing are confirmed on each quotation for the quantity ordered and the delivery destination. JaincoLab supplies single-school orders as well as bulk requirements for schools, colleges and education projects, and exports to buyers in Africa, the Middle East and South and South-East Asia.
JaincoLab supports tender contractors as well as institutions: we manufacture and export laboratory equipment for Ministry of Education projects, World Bank-funded tenders and United Nations programmes, executed successfully in many countries, and we specialise in turnkey laboratory set-ups. Contact us through the tenders page early in your bid preparation.
Frequently asked questions
Which objectives are included?
Achromatic 4x, 10x and 40x SL on a quadruple nosepiece.
Which eyepieces can be chosen?
Any three Huygenian eyepieces from 5x, 6x, 10x, 15x or 16x.
Does the head rotate?
Yes. The 45-degree inclined monocular head rotates through 360 degrees.
What should a quotation request include?
Send the SKU JA-M-868, the eyepiece choice, the number of microscopes and the delivery destination.
