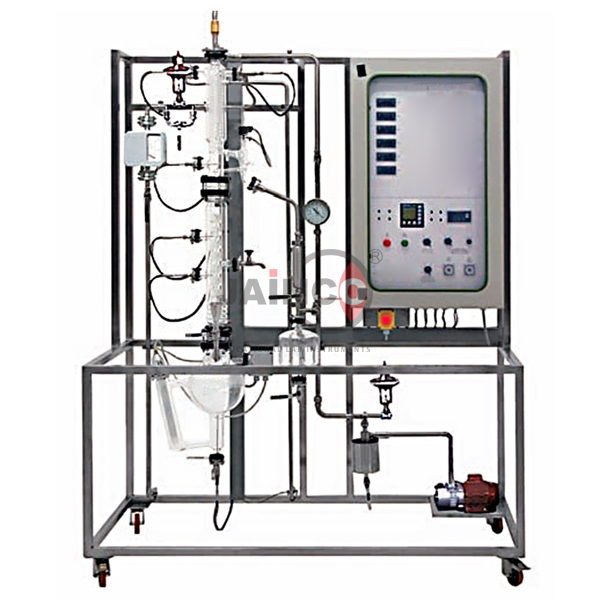

Manual Batch Distillation Pilot Plant
Product Code : JA-CELE-9500
Manual Batch Distillation Pilot Plant
Description:-
Tank for the collection of distillate with 1 liter capacity.
The tube in tube heat exchangers manufactured from stainless steel
6 thermocouples with probes protected by stainless steel shield sleeves
6 electronic temperature indicators
Distillation column height 600 mm with 7 bubble cap trays.
Re-boiler with 4 liters capacity complete with 1600 W electric heater.
Condenser with reflux head.
Pneumatic valve for controlling the condenser cooling water made of stainless steel
Residual pressure electronic transmitter made of stainless steel with a range of 0-1000 mbar and 4-20mA output signal.
Pneumatic valve for controlling the residual pressure made of stainless steel
Vacuum gauge range 0 to 1 bar
The electrical control panel in the main cabinet
Vacuum circuit with trap
Pipework and valves manufactured from stainless steel.
Microprocessor digital PID controller with the serial card.
Residual pressure electronic transmitter made of stainless steel with a range of 0-1000 mbar and 4-20mA output signal.
Pneumatic valve for controlling the residual pressure made of stainless steel
2x electropneumatic converters 0.2 to 1.0 bar and 4-20mA signals
Thyristor unit for controlling the power to the re-boiler electric heater.
2x programmable timers for the control of reflux ratio
Variable-area flow meter made of stainless steel with a range 20 to 250 liters/hour and 4-20mA output signal
Oil vacuum pump with trap and flow rate of 4m3/hour
