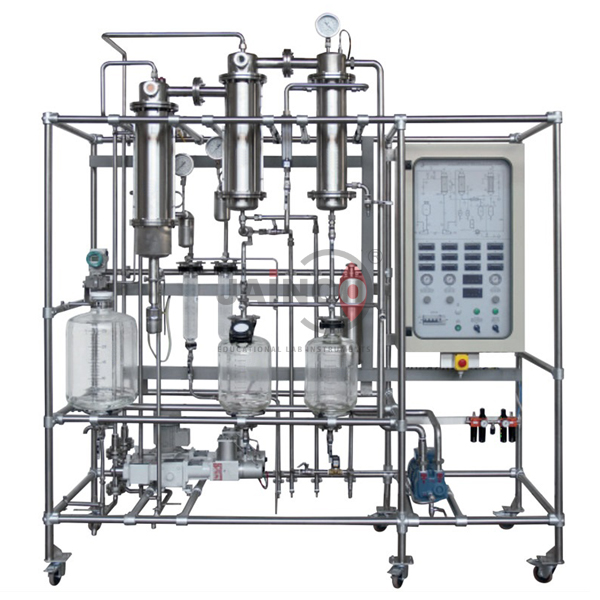

Double Effect Falling Film Evaporation Plant
Product Code : JA-CELE-9520
Double Effect Falling Film Evaporation Plant
Description:-
Tank with a capacity of 10 litres for collecting the condensed solvent
2x Steam Traps
2x Graduated tanks with a capacity of 1 litre for measuring the condensate
Bourdon pressure gauge with a capacity of 0 to 6 bar
Bourdon pressure gauge with a capacity of 0 to 1.6 bar
Calibrated diaphragm with differential pressure transmitter for measuring the steam flow rate
Metering pump with a flow rate of 0 to 32 litres per hour and pneumatic actuator
Feed tank with a capacity of 25 litres
12x electronic temperature indicators
Flow meter with a range of 25 to 250 litres per hour
Liquid ring vacuum pump of power 0.7 kW equipped with air/water separator and solenoid valve for feed water
Tank with a capacity of 10 litres for collecting the concentrated product
12x digital thermocouples with pt100 probes protected by stainless steel shield sleeves
Pipework manufactured from stainless steel
The electrical control panel in the main cabinet
Emergency stop button
Bourdon vacuum gauge with a capacity of 1 to 0
Metering pump with a flow rate of 0 to 8.5 litres per hour
2x Falling film shell-and-tube evaporators, each with an exchange surface of 0.27 m2
Shell-and-tube condenser with an exchange surface of 1.1 m2
Tube-in-tube heat exchanger
Level transmitter, capacitance type with electronic display
Pneumatic valve for control of the steam flow rate, Cv=0.32
