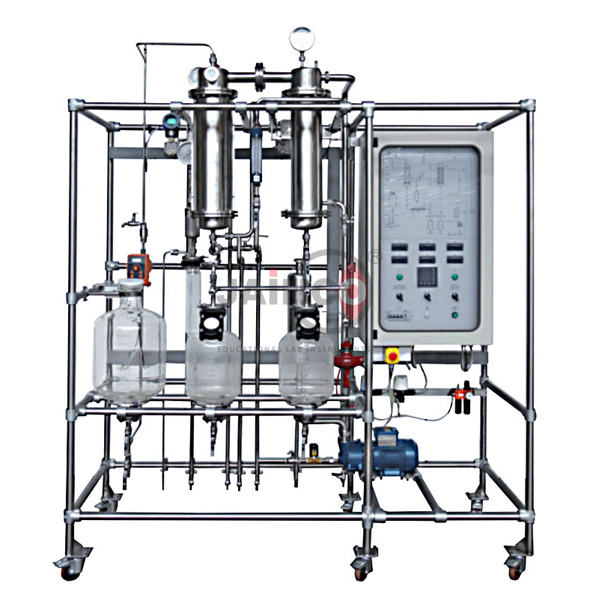

Single Effect Falling Film Evaporation Pilot Plant

Single Effect Falling Film Evaporation Pilot Plant

Product Code : JA-CELE-9519

Single Effect Falling Film Evaporation Pilot Plant
Description:-
Tank with a capacity of 10 liters for collecting the condensed solvent
Bourdon pressure gauge with a capacity of 0 to 1.6 bar
Tube-in-tube heat exchanger.
Graduated tank with a capacity of 1 liter for measuring the condensate
Steam Trap
Metering pump with a flow rate of 0 to 24 liters per hour.
Feed tank with a capacity of 25 liters
Tank with a capacity of 10 liters for collecting the concentrated product
Bourdon pressure gauge with a capacity of 0 to 6 bar
Pneumatic valve for control of the steam flow rate, Cv=0.32
Calibrated diaphragm with differential pressure transmitter for measuring the steam flow rate
6x digital thermocouples with pt100 probes protected by stainless steel shield sleeves
6x electronic temperature indicators
Bourdon vacuum gauge with a capacity of –1 to 0
Metering pump with a flow rate of 0 to 8.5 liters per hour
Falling film shell-and-tube evaporator with an exchange surface of 0.27 m2
Shell-and-tube condenser with an exchange surface of 1.1 m2
