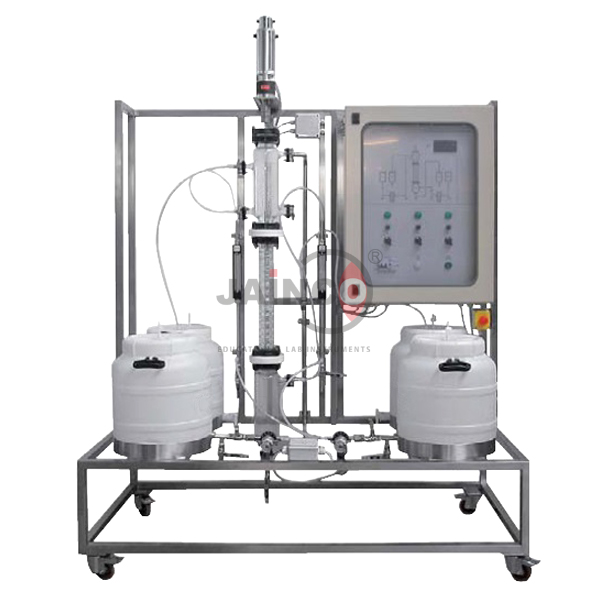

Liquid-Liquid Extraction Pilot Plant With Rotating Disc Column

Liquid-Liquid Extraction Pilot Plant With Rotating Disc Column

Product Code : JA-CELE-9504

Liquid-Liquid Extraction Pilot Plant With Rotating Disc Column
Description:-
The bottom separator of borosilicate glass.
2 metering pumps with the body of stainless steel, the flow rate of 0 to 40 l/h
Feeding tank of plastic material for the light phase, with a capacity of 30L
The framework of stainless steel with castors
Extraction column of borosilicate glass, DN50, h = 600 mm, including disc agitator and motor with tachogenerator.
An electronic indicator of agitator speed.
Extraction column of borosilicate glass, DN50, h = 600 mm, with Raschig rings.
The top separator of borosilicate glass.
Emergency button
Power supply: 230 Vac 50 Hz single-phase - 2 kVA
Dimensions: 1600, 900, 1800 mm
Weight: 130 kg
Feeding tank of plastic material for the heavy phase, with a capacity of 30L
A tank of plastic material, with a capacity of 30L, for collecting the extracted product
Feeding tank of plastic material for the refined product, with a capacity of 30
