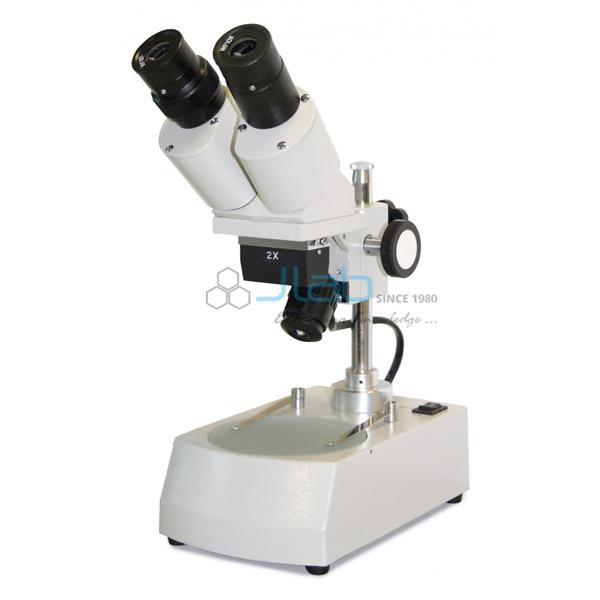

Cordless LED Binocular Stereo Microscope
Product Code : JA-M-8087
The Cordless LED Binocular Stereo Microscope (SKU JA-M-8087) is a low-power stereo microscope for looking at whole specimens in three dimensions, supplied by JaincoLab. A 2x objective with WF10x and WF20x eyepiece pairs gives 20x and 40x, and LED lighting can be switched to top, bottom or both. Because it runs on a rechargeable battery as well as mains, this cordless LED binocular stereo microscope can be used on field trips and benches without power points.
Specifications
According to the listing it has a 45-degree binocular head with dioptre adjustment on one tube and 51 to 75 mm interpupillary distance, a 2x objective, WF10x and WF20x eyepieces in pairs, rack and pinion focusing, 95 mm stage plates and top and bottom LED lighting.
| Product | Cordless LED Binocular Stereo Microscope |
| SKU | JA-M-8087 |
| Head | Binocular, inclined at 45 degrees; dioptre adjustment on one tube; IPD 51-75 mm |
| Objective | 2x, parfocal and parcentred |
| Eyepieces | WF10x and WF20x, a pair of each, with eyeguards |
| Magnification | 20x and 40x |
| Focusing | Rack and pinion coarse focus, safety stop, tension adjustment |
| Stage | Frosted glass plate and reversible black and white plate, both 95 mm diameter, with stage clips |
| Illumination | Top (reflected) and bottom (transmitted) LED; switch for top, bottom or both |
| Power | 110 V or cordless rechargeable battery |
Applications of the cordless LED binocular stereo microscope
Stereo microscopes show solid objects the right way round and in depth, so this model is used for insects, flowers, seeds, rocks and dissections; bottom light suits thin or translucent specimens and top light suits opaque ones.
- Insect, flower and seed study
- Dissections in school biology practicals
- Rock, mineral and fossil observation
- Field trips using battery power
- Checking small parts and soldering
Scope of supply
One unit is one cordless binocular stereo microscope with the 2x objective, both eyepiece pairs, two stage plates, LED lighting and rechargeable battery. Charger or mains voltage, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Each quotation states the minimum order quantity, the lead time and the packing for the quantity requested and the destination. JaincoLab handles bulk school and college orders and tender supplies, and ships to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What magnifications are available?
20x with the WF10x eyepieces and 40x with the WF20x eyepieces, using the 2x objective.
Can it work without mains power?
Yes. It runs on a rechargeable battery as well as mains power.
Which mains voltage is listed?
The listing states 110 V; the mains version for your country is confirmed on the quotation.
What should a quotation request include?
Send the SKU JA-M-8087, your mains voltage, the quantity and the delivery destination.
Related products
- LED Illumination Dual Power Binocular Stereo Microscope
- 3 Way LED Light Dual Power Stereo Microscope
- Cordless Rechargeable Dual Power LED Stereo Microscope
- Binocular Stereo Microscope WF 10x and 20x Eyepieces
See the complete microscopes range for further models and spare parts.
Request a quote
Ask for a quotation on the Cordless LED Binocular Stereo Microscope (JA-M-8087) through the JaincoLab contact page, giving the quantity required and the delivery destination.
