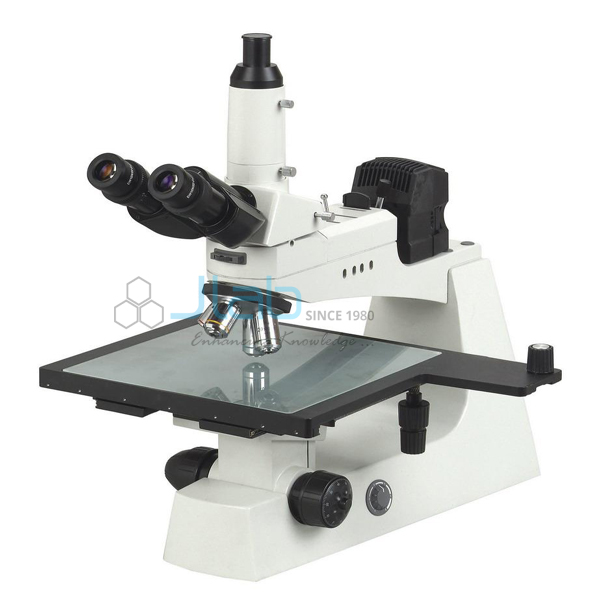

Metallurgical and Industrial Inspection Microscope
Product Code : JA-M-994
The Metallurgical and Industrial Inspection Microscope (SKU JA-M-994) is a trinocular reflected-light microscope with an inside analyser attachment, built for detailed surface inspection of metals and manufactured parts. A quintuple nosepiece carries plan achromatic DIN objectives up to M100x oil, the coaxial stage measures 100 x 120 mm, and a 12 V 50 W source powers the reflected light illuminator. Engineering institutes and industrial training laboratories use this industrial inspection microscope for metallography and quality work.
Specifications
According to the listing it has a 45-degree trinocular head with inside analyser attachment, coaxial focusing knobs on both sides, a quintuple nosepiece, a 100 x 120 mm coaxial mechanical stage, a 12 V 50 W reflected light illuminator, plan achromatic DIN M4x, M10x, M40x and M100x oil objectives and WF10x/20 and reticle 10x/18 eyepieces.
| Product | Metallurgical and Industrial Inspection Microscope |
| SKU | JA-M-994 |
| Head | Trinocular, inclined at 45 degrees, inside analyser attachment |
| Focusing | Coaxial focusing knobs on both sides |
| Nosepiece | Quintuple revolving, accurate centring, positive click stops |
| Stage | Large coaxial mechanical stage 100 x 120 mm |
| Illumination | Reflected light illuminator, power source 12 V 50 W |
| Objectives | Plan achromatic DIN M4x, M10x, M40x, M100x oil |
| Eyepieces | WF10x/20 and reticle eyepiece 10x/18 |
| Dark field | Plan dark field objectives listed; set confirmed on the quotation |
Applications of the industrial inspection microscope
It is used where surfaces need close, documented inspection: the M100x oil objective resolves fine microstructure, the analyser helps with polarised reflected light work, the reticle eyepiece supports measurement, and the trinocular port records images for reports.
- Microstructure and inclusion analysis of metals
- Inspection of machined and coated surfaces
- Measurement with the reticle eyepiece
- Image recording for inspection reports
- Industrial and engineering training laboratories
Scope of supply
One unit is one metallurgical and industrial inspection microscope with the listed head, stage, 12 V 50 W illuminator, four plan objectives and eyepieces. Dark field objectives, camera, adapter, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Packing, minimum order quantity and lead time depend on the order size and the delivery destination, and each is confirmed on the quotation. Bulk orders for school and college laboratories and tender supplies are handled, including export shipments to Africa, the Middle East and South and South-East Asia.
Turnkey laboratory projects are a JaincoLab specialism. We manufacture and export equipment for education-ministry programmes, World Bank tenders and United Nations projects, with successful deliveries in many countries. If you are bidding for a similar tender, share the bill of quantities through our tenders page.
Frequently asked questions
What is the highest objective?
A plan achromatic DIN M100x oil immersion objective, alongside M4x, M10x and M40x.
Does it have polarising capability?
An inside analyser attachment is listed in the trinocular head.
Is dark field available?
Plan dark field objectives are listed; the set supplied is confirmed on the quotation.
What should a quotation request include?
Send the SKU JA-M-994, whether dark field objectives or a camera are needed, the quantity and the delivery destination.
Related products
- Universal Trinocular Metallurgical Microscope
- Large Stage IC Inspection Microscope
- Trinocular Upright Metallurgical Microscope
- Inverted Metallurgical Microscope
Other student, laboratory and research models are listed in the microscopes range.
Request a quote
For a price on the Metallurgical and Industrial Inspection Microscope (JA-M-994), share the quantity required and the delivery destination through the JaincoLab contact page.
