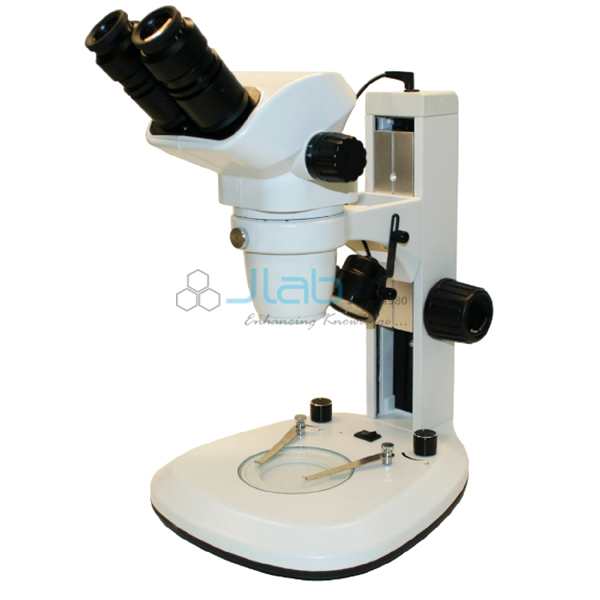

Binocular Zoom Stereo Microscope 6.7x-45x Magnification
Product Code : JA-M-8131
The Binocular Zoom Stereo Microscope 6.7x-45x Magnification (SKU JA-M-8131) is a binocular zoom stereo microscope supplied by JaincoLab with a parfocal 0.67x to 4.5x zoom body, so the image stays in focus while the magnification moves continuously from 6.7x to 45x. The 105 mm working distance and long track stand suit dissection and larger samples.
Specifications
This binocular zoom stereo microscope is listed with the values below; lighting is not specified.
| Product | Binocular Zoom Stereo Microscope 6.7x-45x Magnification |
| SKU | JA-M-8131 |
| Head | Binocular, inclined 45 degrees, rotates 360 degrees; synchronised IPD 54-76 mm |
| Eyepieces | Paired WF10x/22 mm, high eyepoint; +/-5 diopter on both |
| Zoom body | 0.67x-4.5x, zoom ratio 1:6.7, parfocal |
| Magnification | 6.7x-45x; 3.4x-180x with optional auxiliary lenses and eyepieces |
| Working distance | 105 mm; 26-177 mm with optional auxiliary lenses |
| Stand | Long track stand; large, thin base |
| Optional, not included | Auxiliary lenses; WF15x/16 mm, WF20x/12 mm and reticle WF10x/22 mm eyepieces |
Uses of the 6.7x-45x zoom stereo microscope
- Dissection with continuous zoom from overview to detail
- Biological specimens and small organisms
- Inspection of electronic and mechanical parts
- Measurement with an optional reticle eyepiece
Scope of supply and ordering
One unit is the zoom stereo microscope with the WF10x/22 pair on its track stand. Lighting, auxiliary lenses, extra eyepieces, units and delivery are itemised on the quotation.
Frequently asked questions
Does the image stay in focus while zooming?
Yes. The zoom body is parfocal, so the specimen stays in focus as the magnification changes between 6.7x and 45x.
Which accessories extend the range?
Optional auxiliary lenses and WF15x or WF20x eyepieces extend it to 3.4x-180x, with working distances from 26 mm to 177 mm.
Related products
- Trinocular Zoom Stereo Microscope 6.7x-45x Magnification
- Digital Wide Field Stereo Zoom Trinocular Microscope
- Trinocular Zoom Stereo Microscope
- Stereoscopic Zoom Binocular and Trinocular Microscope
Other zoom and stereo models are listed in the microscope range.
Request a quote
To price the Binocular Zoom Stereo Microscope 6.7x-45x Magnification, send the quantity and destination via the contact page. Institutions and contractors buying under a tender can also reach us via the tenders page.
