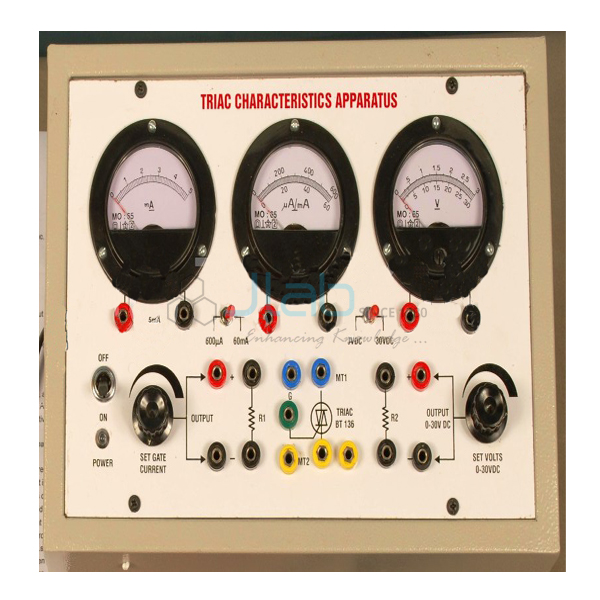

Triac Characteristics Apparatus
Product Code : JA-SCD-1097
The Triac Characteristics Apparatus (SKU JA-SCD-1097) is used to study the main-terminal (MT) characteristics of a Triac when a gate signal is applied. One Triac is mounted on the panel. A 0-25 V DC, 100 mA supply for the main terminals and a 0-5 V DC, 200 mA supply for the gate are built in, three round meters give the readings, and all connections are brought out to terminals.
Specifications
The listing gives these details:
| Product | Triac Characteristics Apparatus |
| SKU | JA-SCD-1097 |
| Device | One Triac, panel-mounted |
| DC supply 1 | 0-25 V, 100 mA |
| DC supply 2 | 0-5 V, 200 mA |
| Meters | Three round meters |
| Size | 15 x 8 x 4 in |
Scope of supply and ordering
One apparatus per order line.
Frequently asked questions
What does the Triac Characteristics Apparatus study?
The MT characteristics of a Triac with a gate signal applied.
What supplies are built in?
0-25 V DC at 100 mA and 0-5 V DC at 200 mA, with three round meters.
