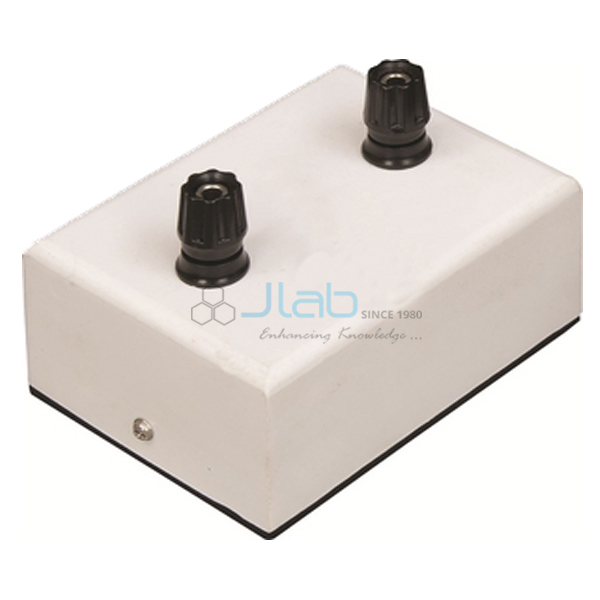

Fixed Condenser Boxes
Product Code : JA-SI-8085
Fixed Condenser Boxes (SKU JA-SI-8085) give a single known capacitance between two 4 mm socket terminals, for use in AC bridge, charging and time-constant experiments. Values from 0.01 to 2 mfd use paper polyester capacitors rated at 250 V working; values from 5 to 40 mfd use electrolytic capacitors rated at 350 V working. The condensers (silver mica, paper polyester or metal film types) are mounted on a plastic plate inside a sturdy case.
Specifications
Values and ratings as given in the product data:
| Product | Fixed Condenser Boxes |
| SKU | JA-SI-8085 |
| Terminals | Two 4 mm socket terminals |
| 0.01 to 2 mfd | Paper polyester capacitors, 250 V working |
| 5 to 40 mfd | Electrolytic capacitors, 350 V working |
| Condenser types | Silver mica, paper polyester, metal film |
| Mounting | Plastic plate in a sturdy case |
Scope of supply and ordering
Each box carries one capacitance value, so state the values and the number of boxes of each when you enquire.
Frequently asked questions
Which capacitance values are available in the fixed condenser boxes?
Values from 0.01 to 2 mfd in paper polyester and from 5 to 40 mfd in electrolytic capacitors.
What working voltage do the boxes have?
250 V for the 0.01-2 mfd boxes and 350 V for the 5-40 mfd boxes.
