RF Oscillators
Product Code : JA-AET-1452

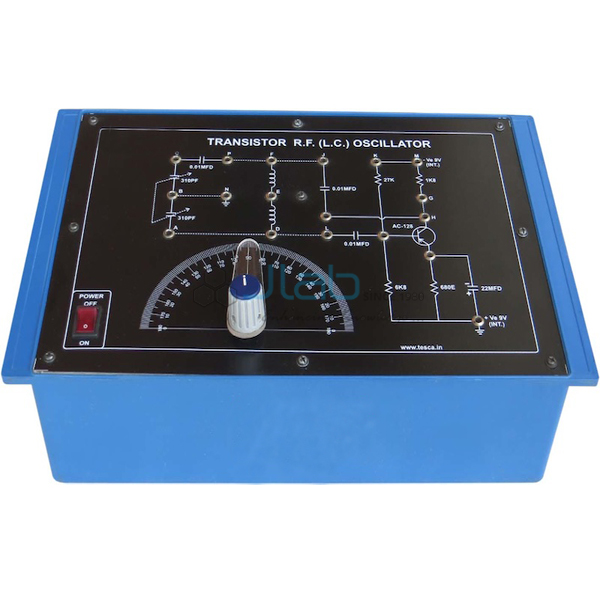

The RF oscillators board is a panel for radio-frequency oscillator practicals, built around a PNP transistor with a variable gang condenser and an internally connected -9 V DC, 50 mA IC-regulated supply. The listing names an absorption wave meter alongside the board (SKU JA-AET-1452).
Specifications
Listed parts and ratings:
| Product | RF Oscillators |
| SKU | JA-AET-1452 |
| DC supply | -9 V DC at 50 mA, IC regulated, internally connected |
| Transistor | PNP |
| Tuning | Variable gang condenser |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
| Weight | 3 kg approx. |
| Dimensions | W 340 x H 110 x D 210 mm |
| Also listed | Absorption wave meter |
Scope of supply and ordering
The listing covers the RF oscillator board with patch cords and operating instructions, supplied by JaincoLab; the oscillator circuits wired on the panel are confirmed on the quotation.
