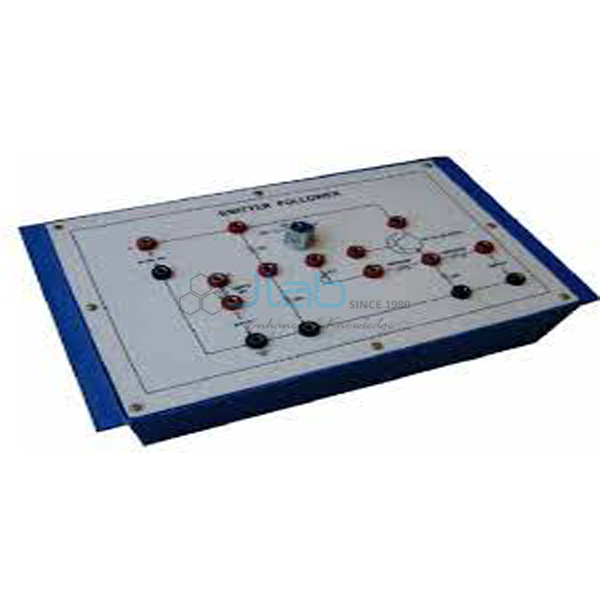

Emitter Follower CC
Product Code : JA-AET-1450
The emitter follower trainer is a common-collector (CC) amplifier board for measuring voltage gain, input impedance and output impedance in electronics practicals. It is built around an NPN transistor with an internally connected +9 V DC, 50 mA IC-regulated supply, and is used with an audio frequency generator, a decade resistance box and an AF millivoltmeter (SKU JA-AET-1450).
Specifications
Parts and ratings listed for the emitter follower board:
| Product | Emitter Follower CC |
| SKU | JA-AET-1450 |
| Configuration | Emitter follower (common collector) |
| DC supply | +9 V DC at 50 mA, IC regulated, internally connected |
| Transistor | NPN |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
| Weight | 3 kg approx. |
| Dimensions | W 340 x H 110 x D 210 mm |
| Other apparatus required | Decade audio frequency generator; decade resistance box; AF millivoltmeter 0-500 mV |
Measurements on the emitter follower
The board is used to find:
- Voltage gain
- Input impedance
- Output impedance
- Overall characteristics of the emitter follower amplifier
Scope of supply and ordering
The listing covers the emitter follower board with patch cords and operating instructions, supplied by JaincoLab; the signal generator, resistance box and millivoltmeter are separate instruments.
Frequently asked questions
What does the emitter follower board measure?
The overall characteristics of the emitter follower amplifier: voltage gain, input impedance and output impedance.
Which instruments are needed with it?
A decade audio frequency generator, a decade resistance box and an AF millivoltmeter with a 0-500 mV range.
What supply does the transistor circuit use?
An internally connected +9 V DC, 50 mA IC-regulated supply.
Related products
Other products in this group are in the analog electronics trainer range.
Request a quote
Request a quotation for the Emitter Follower CC (SKU JA-AET-1450) through the JaincoLab contact page. Buying under a laboratory tender? Use our tenders page.
