Push Pull Amplifier
Product Code : JA-AET-1451

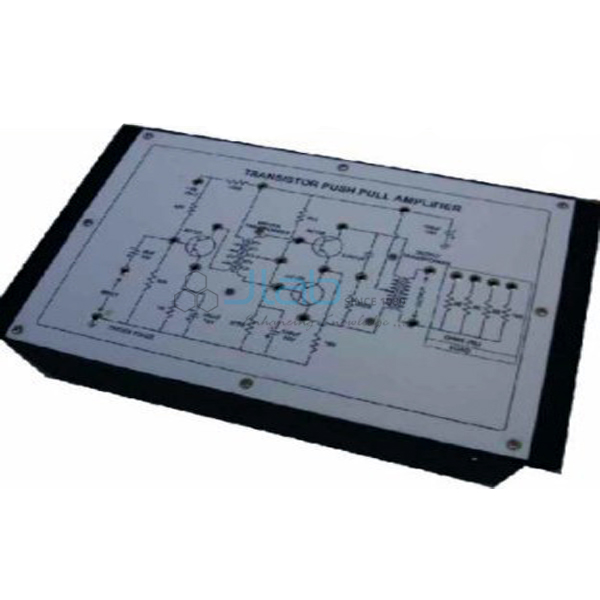

The push pull amplifier trainer is a class B transistor push-pull amplifier board for audio-frequency practicals. Students measure output power, plot the frequency response and measure distortion, using three PNP transistors, driver and output transformers, a -9 V DC, 50 mA regulated supply and four output loads selected by a band switch (SKU JA-AET-1451).
Specifications
The push-pull board carries these parts and ratings:
| Product | Push Pull Amplifier |
| SKU | JA-AET-1451 |
| Amplifier | Class B transistor push-pull, audio frequency |
| DC supply | -9 V DC at 50 mA, IC regulated, internally connected |
| Transformers | Driver transformer and output transformer |
| Output loads | Four, selected by a band switch |
| Transistors | Three PNP |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
| Weight | 3 kg approx. |
| Dimensions | W 340 x H 110 x D 210 mm |
| Other apparatus required | Decade audio frequency generator; AC millivoltmeter; output power meter |
Push pull amplifier experiments
The listed studies are:
- Output power measurement
- Frequency response characteristics
- Distortion measurement
Scope of supply and ordering
The listing covers the push-pull amplifier board with patch cords and operating instructions, supplied by JaincoLab.
Frequently asked questions
What class of amplifier is on the board?
A class B transistor push-pull amplifier working at audio frequencies.
How many load values can be selected?
Four output loads, chosen with a band switch.
Which instruments are needed?
A decade audio frequency generator, an AC millivoltmeter and an output power meter.
