Multi-Process Control Trainer
Product Code : JA-AM-6476

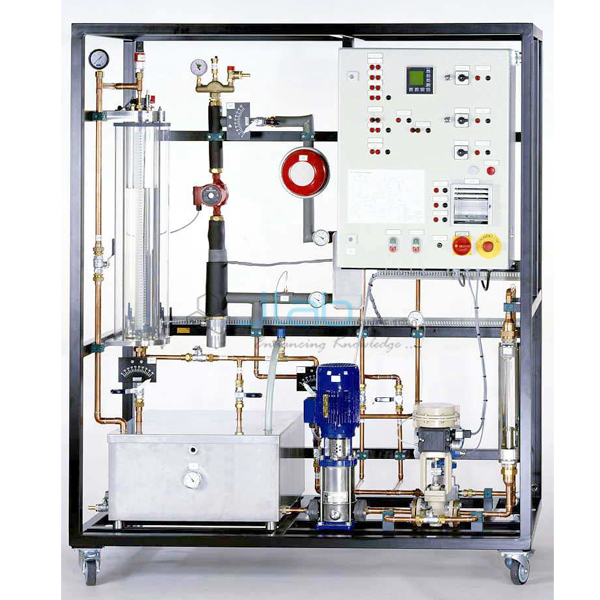

Multi-Process Control Trainer
Technical Description:
- This control trainer is a comprehensive unit featuring only industrial components.
- It contains a transparent tank for liquid-level and pressure control, a corresponding pipe for flow control, and a two-circuit system with a plate heat exchanger for temperature control.
- Alternatively, a pneumatically operated control valve or a speed-controlled pump is used as an actuator.
- The parameters of the digital controller can be adjusted over wide ranges so that a large number of different process conditions can be investigated.
- Electronic sensors measure the individual process values.
- A three-channel recorder with current inputs is included for recording the control behavior over time.
Learning Objectives / Experiments:
- Introduction to the layout and function of a control loop.
- Open and closed control loop.
- Critical amplification.
- Liquid-level control.
- Flow control.
- Pressure control.
- Temperature control.
- Cascade control: level-flow, temperature-flow.
- Different actuators: control valve, pump with variable speed.
- Defining the parameters of a controller after JAab.
Features:
- Industrial microprocessor-based controller with free parameter setting; 4 controlled variables.
- Continuous, on-off and cascade control.
- Usage of standard industrial components.
- 3-channel chart recorder.
- Process control software optionally available.
