Digital Lab Station
Product Code : JA-BT-1485

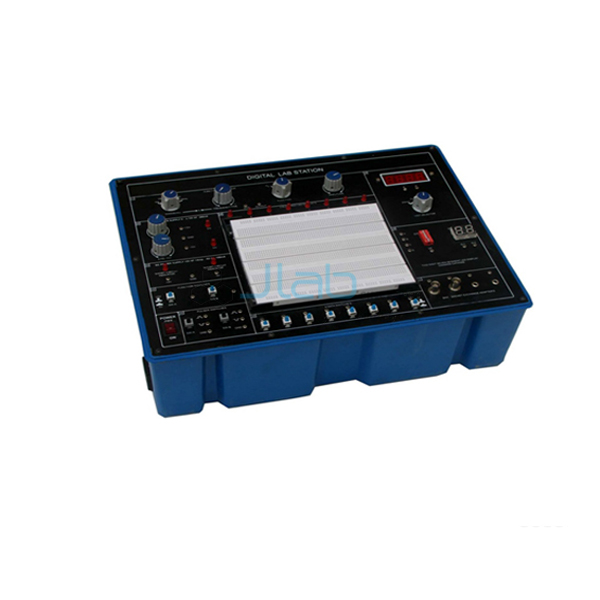

The digital lab station is a digital electronics trainer whose listed experiments run from logic gates, Boolean identities and code converters to counters, shift registers, encoders and decoders, CMOS-TTL interfacing and a crystal oscillator. The listing gives no hardware specification, so the configuration is confirmed on the quotation (SKU JA-BT-1485).
Specifications
Listed data:
| Product | Digital Lab Station |
| SKU | JA-BT-1485 |
| Hardware specification | Confirmed on the quotation |
Experimental coverage
The listed experiments are:
- Logic gate operation; dual nature of logic gates; De Morgan's theorem
- Binary to Gray, Gray to binary and binary to excess-3 code conversion
- Binary adder, subtractor and multiplier; EX-OR gate implementation and application
- RS, JK, D and T flip-flops
- Johnson, 4-bit ring, 4-bit binary up/down, decade and modulo-12 (direct clearing) counters
- Multiplexer and demultiplexer; 8-to-3 encoder; 3-to-8 decoder
- Shift registers: SIPO, SISO and PIPO
- CMOS-TTL interfacing; crystal oscillator; pulse stretcher circuit
Scope of supply and ordering
The listing covers the digital lab station for the experiments above, supplied by JaincoLab; supplies, breadboard and accessories are set out on the quotation.
Frequently asked questions
Which counters can be built on the digital lab station?
Johnson, 4-bit ring, 4-bit binary up/down, decade and modulo-12 counters, the last by direct clearing.
Which shift register types are covered?
SIPO, SISO and PIPO shift registers.
