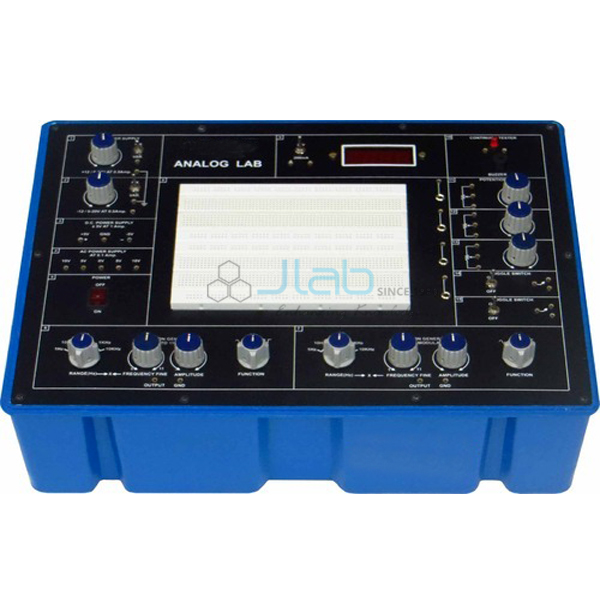

Analog Lab
Product Code : JA-BT-1482
The analog lab is a breadboard trainer for elementary and advanced analog electronics practicals, with DC regulated power supplies, an AC supply, a function generator, a 3½ digit digital meter and a continuity tester built in. The function generator gives sine, square and triangular waves from 1 Hz to 110 kHz in five steps, variable from 50 mV to 10 Vpp (SKU JA-BT-1482).
Specifications
Built-in facilities and ratings:
| Product | Analog Lab |
| SKU | JA-BT-1482 |
| Regulated DC supplies | +5 V at 1 A; -5 V at 1 A; +12 V / 0 to +20 V at 500 mA; -12 V / 0 to -20 V at 500 mA |
| AC supply | 5-0-5 V and 10-0-10 V at 100 mA; usable as 5, 10, 15 or 20 V or as centre tap |
| Function generator | Sine, square, triangular; 1 Hz to 110 kHz in 5 steps, variable between steps; output 50 mV to 10 Vpp variable |
| Digital meter | 3½ digit; DC voltmeter 0-20 V (dual range); ammeter 0-200 mA |
| Continuity tester | With beeper |
| Potentiometers | 3 (1 kilohm, 100 kilohm, 100 kilohm) with terminals |
| Switches | 2 SPDT, on board |
| Power | 230 V ±10%, 50 Hz |
Scope of supply and ordering
The listing covers the analog lab with its built-in supplies, function generator, meter and continuity tester, supplied by JaincoLab.
Frequently asked questions
What waveforms does the analog lab generate?
Sine, square and triangular waves from 1 Hz to 110 kHz in five steps, variable between steps, with 50 mV to 10 Vpp output.
Which DC supplies are available?
+5 V and -5 V at 1 A, and +12 V and -12 V at 500 mA that can also be varied from 0 to 20 V.
Is a meter built in?
Yes. A 3½ digit digital meter with a 0-20 V DC voltage range and a 0-200 mA current range, plus a continuity tester with beeper.
