Demo Unit Gas Burner
Product Code : JA-ELA-5439

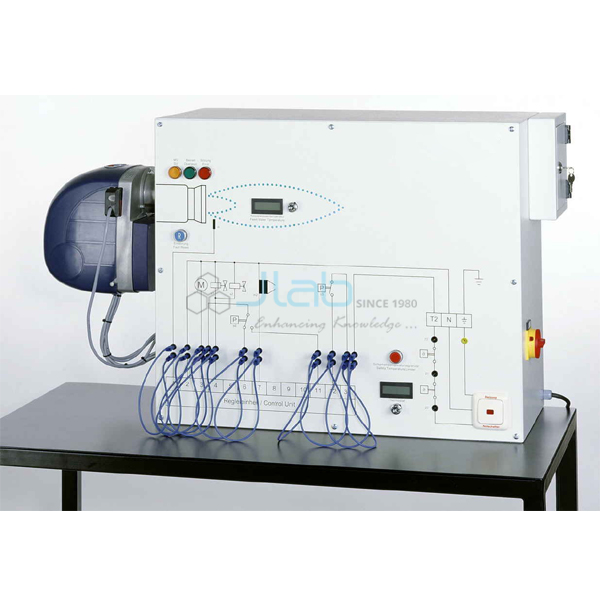

The Demo Unit Gas Burner (SKU JA-ELA-5439) is a training model, supplied by JaincoLab, of a fully automatic forced-air gas burner for natural gas, showing all of the burner operating states. It is built with real system components such as the flame safeguard, gas and air pressure control devices, ignition transformer and gas solenoid valves. Nine fault switches in a lockable box let an instructor set faults, which trainees trace through test points brought out to lab jacks.
Specifications
The unit is rated 15 to 45 kW burner output with a connection load of about 160 W and a 70 W fan motor, and includes a PLC and a digital multimeter.
| Product | Demo Unit Gas Burner |
| SKU | JA-ELA-5439 |
| Burner | Fully automatic forced-air gas burner for natural gas |
| Output | 15 to 45 kW |
| Connection load | Approx. 160 W |
| Motor power | 70 W |
| Fault simulation | 9 fault switches in a lockable box |
| Real components | Flame safeguard, gas and air pressure controls, ignition transformer, thermostat, safety temperature limiter, gas solenoid valves, fan motor, heating emergency switch |
| Test points | Lab jacks and measuring bridge connectors |
| PLC | 16 digital inputs, 14 digital outputs, 2 analogue inputs, 1 analogue output |
| Meter | Digital multimeter for DC and AC |
Training use
- Burner start-up sequence and operating states
- Fault finding on flame supervision, pressure switches and valves
- Measurements at the burner electrical test points
- PLC-based burner control in heating technician courses
Scope of supply and ordering
The listing covers the demo unit with its fault box, PLC and multimeter as described; gas connection, installation requirements, quantity and lead time are confirmed on the quotation.
Frequently asked questions
How are faults introduced?
Through 9 fault switches housed in a lockable box.
Which fuel is the burner designed for?
Natural gas; it is a fully automatic forced-air gas burner rated 15 to 45 kW.
What PLC inputs and outputs does it have?
16 digital inputs, 14 digital outputs, 2 analogue inputs and 1 analogue output.
Related products
- Forced Air Gas Burner Training Panel
- Safety Devices Training Panel
- Exhaust Gas Analyser
- Domestic Gas Supply Training Panel
Heating and gas training panels are listed in the educational laboratory apparatus range.
Request a quote
For the Demo Unit Gas Burner (JA-ELA-5439), send your requirement through the contact page for a quotation. Institutions and contractors buying under a tender can also reach us via the tenders page.
