Young Scientist Dual Scope
Product Code : JA-M-8028
The Young Scientist Dual Scope (SKU JA-M-8028) is a battery-powered microscope for beginners, supplied by JaincoLab, that works both as a slide microscope and as a low-power viewer for solid objects. Bottom light shows slides of cells and tissues, and top light shows rocks, coins, stamps, insects and flowers. A WF10x eyepiece with 4x, 10x and 40x objectives is used, and a discovery kit of slides, stains and tools comes with this young scientist dual scope.
Specifications
The listing gives a monocular 45-degree head rotating 360 degrees, a WF10x eyepiece, a revolving nosepiece with parfocal 4x, 10x and 40x objectives, coarse focusing with a stage stop, top and bottom LEDs with intensity control, a 6-hole disc diaphragm and operation on three AA batteries.
| Product | Young Scientist Dual Scope |
| SKU | JA-M-8028 |
| Head | Monocular, 45 degrees, rotates 360 degrees |
| Eyepiece | WF10x |
| Objectives | 4x, 10x, 40x; parfocal, parcentred, colour-coded |
| Focusing | Coarse focus with stage stop |
| Stage | Plain stage with locked-on spring clips |
| Illumination | Dual LED (top and bottom) with intensity control; 6-hole disc diaphragm |
| Power | 3 AA batteries (not included) |
| Size and weight | 6.5 x 4.5 x 11 in; 2 lb |

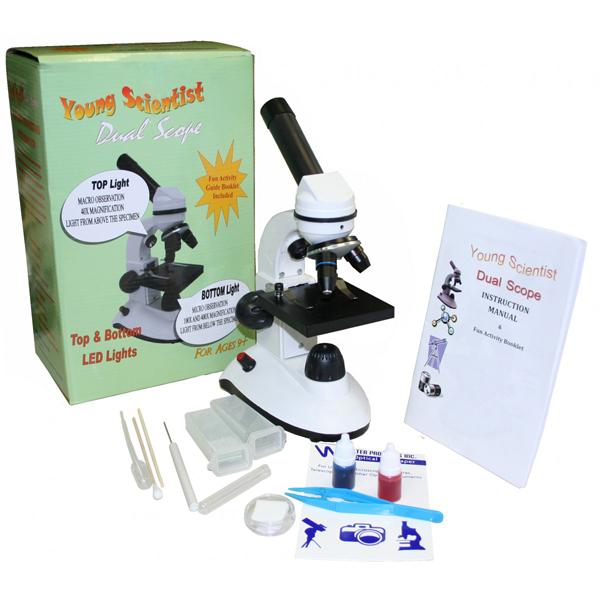

| Discovery kit | 5 blank slides, 1 concavity slide, 4 prepared slides, 2 bottles of stain (red and blue), tweezers, teasing needle, slide labels, cover glass, lens paper, plastic Petri dish, test tube and dropper |
Applications of the young scientist dual scope
It introduces children and junior school students to both kinds of magnified viewing: prepared and self-made slides with bottom light, and solid specimens with top light, and its battery power makes it usable outdoors for field study.
- First slide-making with the discovery kit
- Viewing insects, leaves and flowers
- Rocks, coins and stamps
- Field study away from mains power
- Junior science clubs and home learning
Scope of supply
One unit is one young scientist dual scope with the discovery kit listed above. Batteries are not included; spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, lead time and packing are confirmed on each quotation for the quantity ordered and the delivery destination. JaincoLab supplies single-school orders as well as bulk requirements for schools, colleges and education projects, and exports to buyers in Africa, the Middle East and South and South-East Asia.
JaincoLab supports tender contractors as well as institutions: we manufacture and export laboratory equipment for Ministry of Education projects, World Bank-funded tenders and United Nations programmes, executed successfully in many countries, and we specialise in turnkey laboratory set-ups. Contact us through the tenders page early in your bid preparation.
Frequently asked questions
Can it be used without mains power?
Yes. It runs on three AA batteries, which are not included.
What is in the discovery kit?
Blank, concavity and prepared slides, red and blue stains, tweezers, a teasing needle, labels, cover glass, lens paper, a Petri dish, test tube and dropper.
Which objectives are fitted?
4x, 10x and 40x objectives, used with a WF10x eyepiece.
What should a quotation request include?
Send the SKU JA-M-8028, the quantity and the delivery destination.
