Vertical Water Tube Boiler
Product Code : JA-AM-6087

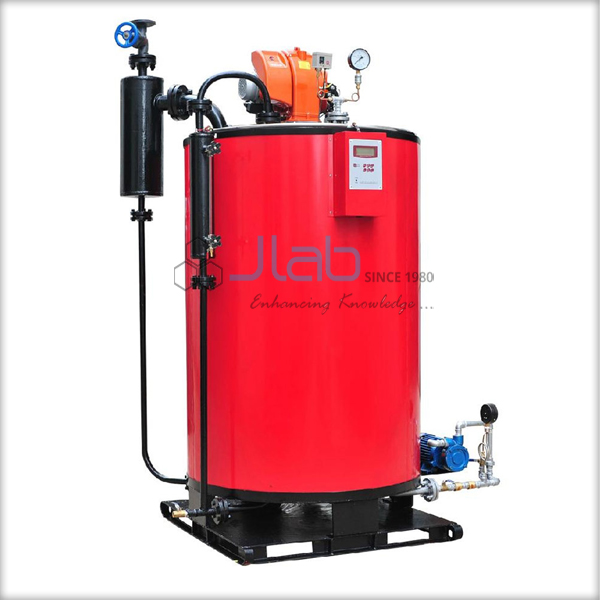

The Vertical Water Tube Boiler model (SKU JA-AM-6087) shows a vertical boiler whose cylindrical fire box is fitted with cross tubes to increase the heating surface and improve the circulation of the water. The vertical water tube boiler model is complete with a stop valve, check valve, safety valve, manhole, water gauge and steam gauge. JaincoLab makes it for thermal engineering teaching.
Specifications
The Vertical Water Tube Boiler model has a cylindrical fire box with cross tubes and a standard set of mountings; its dimensions are not listed and are confirmed on the quotation.
| Product | Vertical Water Tube Boiler |
| SKU | JA-AM-6087 |
| Boiler type | Vertical, with water cross tubes |
| Fire box | Cylindrical, fitted with cross tubes |
| Purpose of cross tubes | Larger heating surface; better water circulation |
| Mountings | Stop valve; check valve; safety valve; manhole; water gauge; steam gauge |
Applications of the vertical water tube boiler model
The vertical water tube boiler model is used to show how cross tubes in the fire box add heating surface and improve water circulation, and to compare this design with fire tube boilers.
- Diploma and degree thermal engineering lessons on boilers
- ITI boiler attendant trade theory
- Comparison with Cochran and Lancashire fire tube boilers
- Identification of standard boiler mountings
Scope of supply
The listing covers one Vertical Water Tube Boiler model with the mountings listed above. It is a teaching model only. Its dimensions are stated on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
The quotation for the Vertical Water Tube Boiler model states the packing, the minimum order quantity and the lead time for the quantity ordered and the delivery destination. Orders range from a single unit to bulk and tender supply for polytechnics, engineering colleges and ITIs.
Frequently asked questions
Why does the fire box have cross tubes?
They increase the heating surface and improve the circulation of the water.
Which mountings are included?
Stop valve, check valve, safety valve, manhole, water gauge and steam gauge.
Is the size listed?
No. The dimensions are confirmed on the quotation.
What should I send for a quote?
Send the SKU JA-AM-6087, the quantity and the delivery destination.
