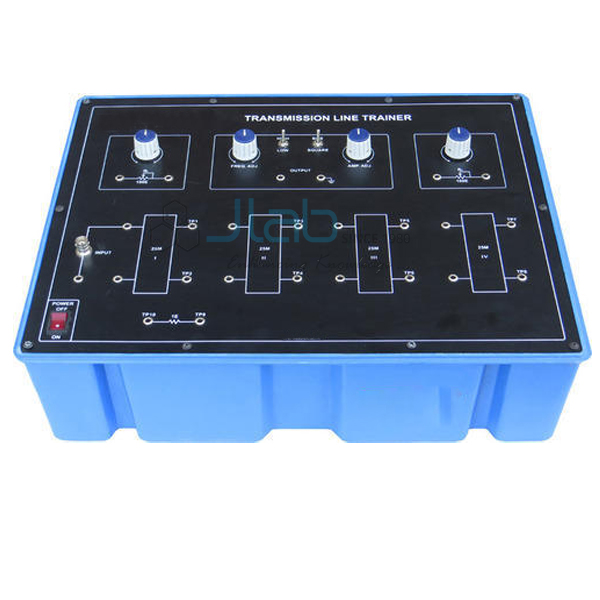

Transmission Line Trainer
Product Code : JA-CT-1504
The transmission line trainer uses four 25 m coaxial cables, 100 m in all, to measure line characteristics, attenuation, input impedance, the phase between current and voltage, frequency response, stationary waves, phase shift along the line, fault location and pulse behaviour. A built-in sine/square signal generator covers 40 kHz to 4 MHz in two bands, and two potentiometers match the line impedance (SKU JA-CT-1504).
Specifications
The transmission line trainer is listed with:
| Product | Transmission Line Trainer |
| SKU | JA-CT-1504 |
| Line | 4 coaxial cables of 25 m each; 100 m total |
| Impedance matching | Two potentiometers |
| Signal generator | Sine/square; 40 kHz to 4 MHz in two bands (40-400 kHz, 400 kHz-4 MHz); frequency and amplitude potentiometers |
| Switches | SPDT for sine or square; SPDT for high or low band |
| Input | BNC connector |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
| Other apparatus required | CRO 20 MHz |
Measurements on the line
The listed measurements are:
- Characteristics and attenuation of the line
- Input impedance
- Phase displacement between current and voltage at the line input
- Frequency characteristic
- Stationary waves
- Signal phase shift along the line
- Fault localisation
- Line under pulsed conditions
Scope of supply and ordering
The listing covers the transmission line trainer with its 100 m of coaxial line, patch cords and operating instructions, supplied by JaincoLab.
Frequently asked questions
How long is the transmission line?
100 m, made up of four 25 m coaxial cables.
What signal source is built in?
A sine/square generator from 40 kHz to 4 MHz in two bands, with frequency and amplitude controls.
Can faults be located on the line?
Yes. Fault localisation within the line is one of the listed measurements.
