Timer Counter
Product Code : JA-FMDE-9433

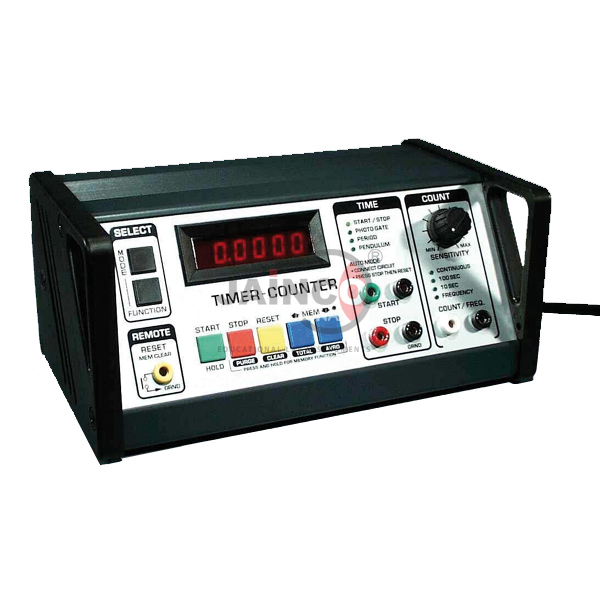

Timer Counter
Description:-
The Counting function can be set to Continuous Count, Counts over 100s, Counts over 10s, Counts over 1s (or frequency in Hz).
This 'Timer Counter / Frequency is a very compact and powerful instrument that runs from a 240V.AC. mains.
A mode button permits timing of Stop/Start, PhotoGate, Period and Pendulum.
Memory is stored up to 20 readings.
It has a bright red LED 6 digit display and times up to 99.9999s with a resolution of 0.1ms (0.0001s) and continues to 999.999 by 1ms (0.001s).
An excellent and very versatile instrument.
A rotary control permits sensitivity adjustment of the counting input.
Feature:-
High-speed timing to 100 microseconds (0.0001s) resolution.
Large six digit LED display.
Automatic loading memory up to a depth of 20 values.
Memory items can be selectively deleted to remove errors.
Memory items can be scrolled, totaled or averaged.
All press button operation with LED indication of functions.
Several different modes of timing are selectable.
The giant display has large digits and displays both the data and the unit relating to the data (Hz, sec. etc.).
Start/Stop time sockets also operate as remote Start/Stop sockets when running in count or frequency modes.
Some larger bench models have the ‘D’ connector socket to operate remote Giant LED Display for classroom viewing.
