Tetrode and Pentode Valve Characteristics Apparatus with Stabelized Power Supply
Product Code : JA-COVT-1074

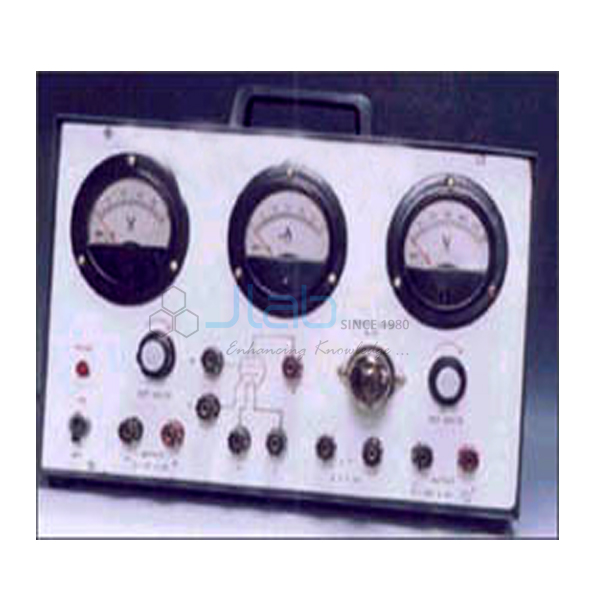

The Tetrode and Pentode Valve Characteristics Apparatus (SKU JA-COVT-1074) is used to plot the plate and screen characteristics of a tetrode and a pentode, using a 6SJ7 valve. Two DC supplies, variable 0-300 V at 50 mA and 25 V at 25 mA, feed the electrodes, a 6.3 V AC, 1 A supply heats the filament, and five round meters give the voltages and currents needed for the curves.
Specifications
The listing gives these details:
| Product | Tetrode and Pentode Valve Characteristics Apparatus with Stabelized Power Supply |
| SKU | JA-COVT-1074 |
| Valve | 6SJ7 |
| DC supply 1 | Variable 0-300 V, 50 mA |
| DC supply 2 | 25 V, 25 mA |
| Filament supply | 6.3 V AC, 1 A |
| Meters | Five round meters |
| Size | 18 x 7.5 x 5.5 in |
Scope of supply and ordering
One apparatus with its 6SJ7 valve per order line.
Frequently asked questions
Which characteristics can be plotted?
The plate and screen characteristics of a tetrode and a pentode valve.
How many meters does it have?
Five round meters, with 0-300 V and 25 V DC supplies and a 6.3 V AC filament supply.
