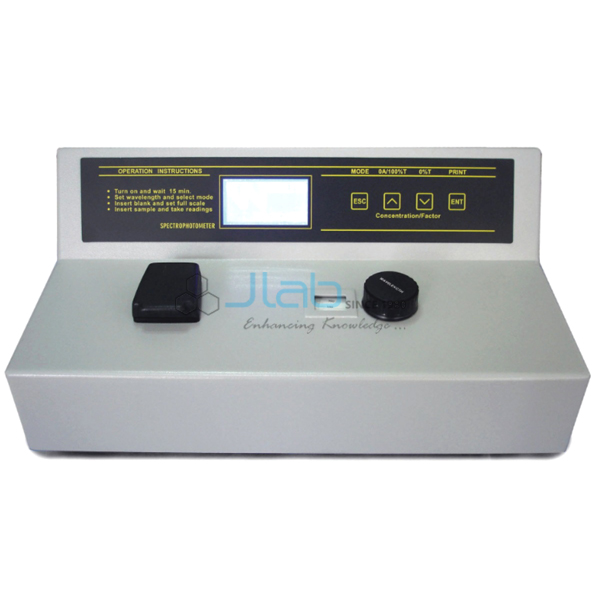

Spectrophotometer 335-1000nm
Product Code : JA-LE-8253
Spectrophotometer 335-1000nm
Description:-
Jaincolab features a 10nm slit width and is designed to be used with ½” (13mm) round tubes or 10mm square cuvettes (an adaptor is supplied at no additional charge for 10mm square optical glass cuvettes).
Optional software packages are also available for further processing and analyses of data collected.
The spectrophotometer comes with 12 round optical glass cuvettes, a square cuvette adapter, dust cover, and user manual.
Jaincolab is reliable and easy to use featuring automatic zeroing, one-touch blanking, and built-in automatic filters for easy operation.
Each option can easily be selected by using the Mode button located on the control panel.
The large screen graphics LCD are easy to read and gives quick accurate readings in Absorbance, Transmittance, Factor, and Concentration.
High-quality silicon photodiode detector and 1200 lines/mm grating assure high performance, while second-order filters are built-in and automatically adjust as the wavelength is set.
Jaincolab offers a USB port to interface with Windows-based computers.
Specification:-
|
Wavelength Range: |
335~1000nm |
|
Slit Width: |
10nm |
|
Optical System: |
Single Beam, Grating System 1200 lines/mm |
|
Wavelength Accuracy: |
± 2nm |
|
Wavelength Repeatability: |
± 1nm |
|
Display: |
Graphic LCD; Absorbance, Transmittance, Factor & Concentration |
|
Stray Energy: |
≤ 0.3%T at 340 and 400nm |
|
Photometric Range: |
0% -125% Transmittance,0 - 2.5 Absorbance,0 - 9999C (0 - 9999F) |
|
Photometric Accuracy: |
± 1% T |
|
Data Output: |
USB & RS232 |
|
Light Source: |
Tungsten Halogen Lamp 6V/10W |
|
Power Requirements: |
90-240Vac,50-60Hz,50VA |
