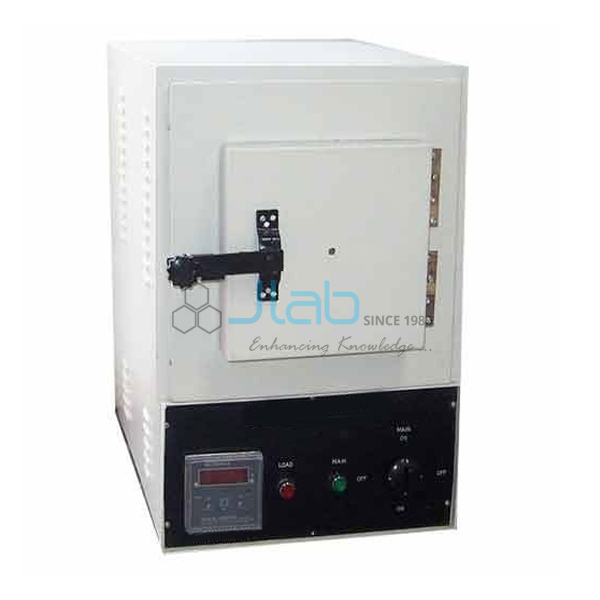

Rectangular Muffle Furnace Laboratory Model
Product Code : JA-LE-2061
The Rectangular Muffle Furnace Laboratory Model (SKU JA-LE-2061) is a box-type muffle furnace with a thick mild steel outer shell finished in stoving enamel paint. Its heating elements sit on a grooved refractory lining so they can be replaced easily. This laboratory muffle furnace reaches 1000°C maximum with a working temperature of 940°C, is controlled by an energy regulator and is offered in inner muffle sizes from 225 x 100 x 100 mm to 450 x 225 x 225 mm. It is made by JaincoLab.
Specifications
Temperature is set with an energy regulator; a digital temperature indicator-cum-controller and a pyrometer are available as options. The inner muffle size is chosen from the listed range when ordering.
| Product | Rectangular Muffle Furnace Laboratory Model |
| SKU | JA-LE-2061 |
| Outer shell | Thick mild steel, stoving enamel paint finish |
| Heating elements | Heating wire on a grooved refractory lining, replaceable |
| Maximum temperature | 1000°C |
| Working temperature | 940°C |
| Temperature control | Energy regulator |
| Options | Digital temperature indicator-cum-controller, pyrometer |
| Inner muffle sizes | 225 x 100 x 100 mm up to 450 x 225 x 225 mm |
Applications of the laboratory muffle furnace
A muffle furnace heats samples inside an enclosed refractory chamber, which suits ashing, ignition and heat-treatment work in teaching and testing laboratories.
- Ashing and ignition of samples in chemistry laboratories
- Heat treatment of small metal and ceramic samples
- High-temperature practicals in college chemistry labs
- Controlled furnace heating in quality-control laboratories
Scope of supply and ordering
The listing covers one rectangular muffle furnace in the inner muffle size ordered, with energy regulator control, made by JaincoLab. The digital indicator-cum-controller and pyrometer are options; crucibles and the electrical rating are confirmed on the quotation.
Frequently asked questions
What is the maximum temperature?
The furnace reaches 1000°C, with a working temperature of 940°C.
Which inner muffle sizes are offered?
Sizes run from 225 x 100 x 100 mm up to 450 x 225 x 225 mm.
How is the temperature controlled?
By an energy regulator; a digital indicator-cum-controller and a pyrometer are options.
Can the heating elements be replaced?
Yes, they sit on a grooved refractory lining for easy replacement.
Related products
See the rest of Lab Equipment or the full chemistry lab equipment range.
Request a quote
To request a quotation for the muffle furnace, send the inner muffle size, any options and the delivery destination through the JaincoLab contact page or email [email protected]. Tender and project enquiries can be sent through the tenders page.
