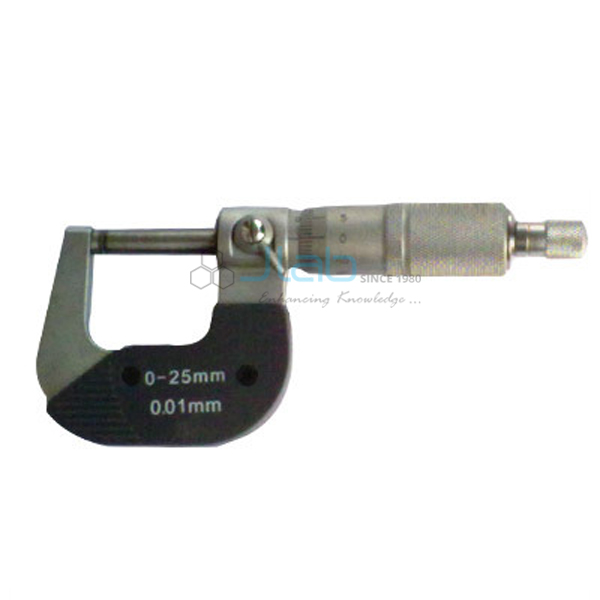

Outside Micrometers Printed Marking
.jpg)
Product Code : JA-ELA-6394
Outside Micrometers Printed Marking (SKU JA-ELA-6394) are precision measuring instruments supplied by JaincoLab for measuring short external lengths, diameters and thicknesses accurately in workshops, metrology laboratories and engineering practicals. The scale markings are printed, the measuring faces are carbide tipped for wear resistance, and a locking clamp and ratchet stop let each reading be taken at a consistent measuring force and held. The frame has a green or blue metallic finish.
Specifications
Each micrometer reads to 0.01 mm (0.001 in); ten sizes cover 0 to 250 mm in 25 mm steps.
| Product | Outside Micrometers Printed Marking |
| SKU | JA-ELA-6394 |
| Scale marking | Printed |
| Least count | 0.01 mm / 0.001 in |
| Measuring faces | Carbide tipped |
| Controls | Locking clamp and ratchet stop |
| Frame finish | Green or blue metallic |
| Metric sizes (mm) | 0-25, 25-50, 50-75, 75-100, 100-125, 125-150, 150-175, 175-200, 200-225, 225-250 |
| Inch sizes | 0-1, 1-2, 2-3, 3-4, 4-5, 5-6, 6-7, 7-8, 8-9, 9-10 |
Measuring tasks
- Diameters of shafts, rods and wires
- Thickness of plates, sheets and machined parts
- Checking dimensions in workshop and metrology practicals
Scope of supply and ordering
Micrometers are supplied by JaincoLab by size range, singly or as a set; the metric or inch version, quantity and packing are confirmed on the quotation.
Frequently asked questions
What is the least count?
0.01 mm, or 0.001 inch on the inch versions.
Which sizes are available?
Ten ranges from 0-25 mm to 225-250 mm, or 0-1 inch to 9-10 inches.
Why is a ratchet stop fitted?
It limits the measuring force, so readings are taken at the same pressure each time.
Are inch versions available?
Yes. Inch micrometers are listed from 0-1 in to 9-10 in, reading to 0.001 in.
