Multi Pass Floating Head
Product Code : JA-AM-5940

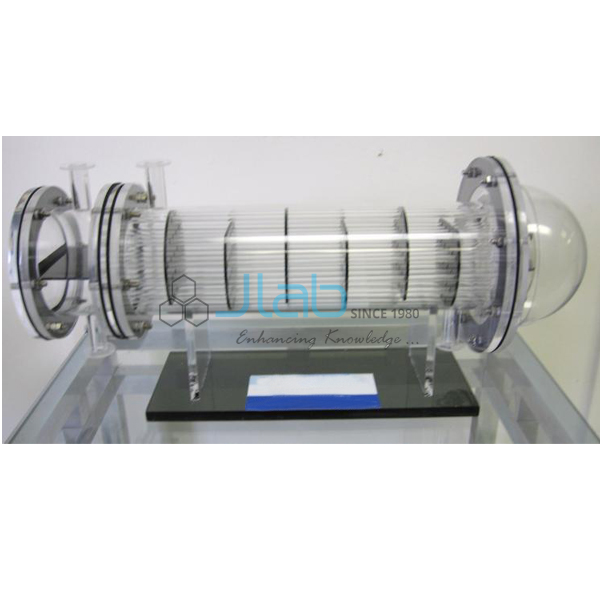

The Multi Pass Floating Head (SKU JA-AM-5940) is a training model of a shell-and-tube heat exchanger with a floating head and multiple tube-side passes, supplied by JaincoLab for process and maintenance training. In a floating head design one tube sheet is free to move, so the tube bundle can expand with temperature and can be pulled out for cleaning, which is why this type is common in refineries.
Specifications
The saved listing gives only the product name, so the model's scale, dimensions, materials and sectioning are confirmed on the quotation.
| Product | Multi Pass Floating Head |
| SKU | JA-AM-5940 |
| Equipment represented | Floating head shell-and-tube heat exchanger |
| Tube-side passes | Multi pass (as named) |
| Specification | Scale, size and materials confirmed on the quotation |
Applications of the floating head exchanger model
The model is used to show how a floating head accommodates thermal expansion and allows bundle removal, and to trace the multi-pass tube-side flow, in heat transfer and maintenance training.
- Heat transfer lessons in chemical engineering
- Refinery maintenance training on bundle removal
- Process operator training
- Comparison with fixed tube sheet designs
Scope of supply
The listing covers one Multi Pass Floating Head as described above, supplied by JaincoLab. Its scale, dimensions, materials and whether it is sectioned or dismantlable are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, lead time and packing for the Multi Pass Floating Head are confirmed on each quotation according to the quantity and the delivery destination. JaincoLab supplies single units for a department as well as bulk orders for schools, colleges and training institutes.
JaincoLab supports tender contractors as well as institutions: we manufacture and export laboratory equipment for Ministry of Education projects, World Bank-funded tenders and United Nations programmes, executed successfully in many countries, and we specialise in turnkey laboratory set-ups. Contact us through the tenders page early in your bid preparation.
Frequently asked questions
What does the floating head exchanger model show?
It is a training model of the equipment named; the detail it shows is confirmed on the quotation.
Is it a working unit?
It is listed as a training model; whether it is static, sectioned or operable is confirmed on the quotation.
Who uses these models?
Chemical engineering departments, polytechnics and process-plant training centres.
What should I send for a quotation?
Send the SKU JA-AM-5940, the quantity and the delivery destination.
